| Basic Information | ||
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) |
|
| Chipset | Intel B760 | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm | |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 | |
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
|
| Maximum Memory | 256GB |
|
| Others | ||
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
|
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Wireless Communication module | - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 160MHz with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-MIMO - Supports Killer LAN Software |
|
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks |
|
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Audio | ||

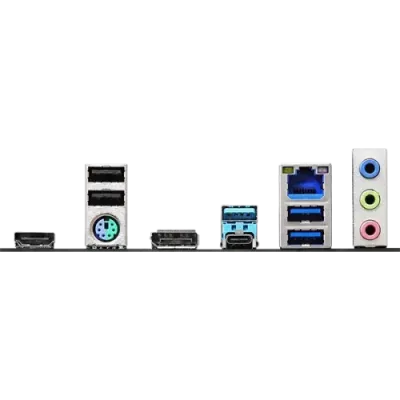

| Internal I/O Ports | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header | |
| Others | Display Port (s) 1x DisplayPort |
|
| Others | ||
| Special Features | Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
|
| Warranty Details | ||
| Warranty Details | 3 years Warranty | |
| others | ||

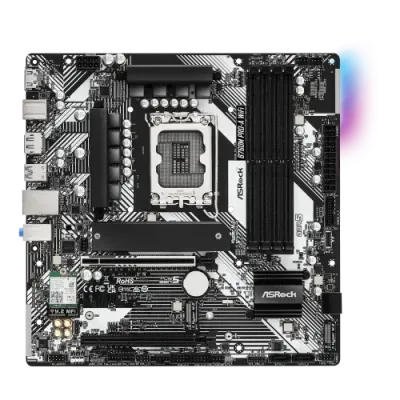

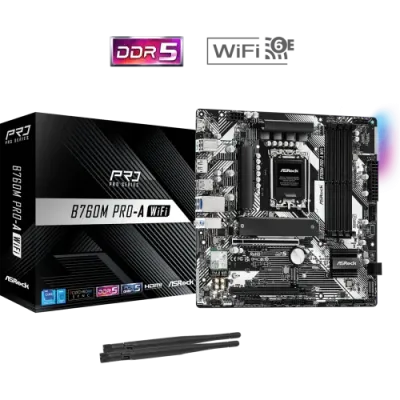

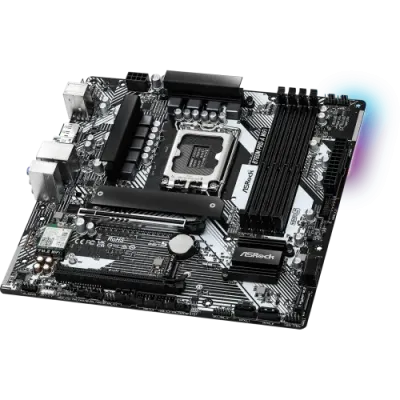

The ASRock B760M Pro-A WiFi DDR5 Micro ATX Motherboard is a high-performance platform designed for Intel 14th, 13th, and 12th Gen Core processors, providing exceptional speed, stability, and connectivity. Equipped with four DDR5 memory slots, it supports up to 256GB at 7200+ MHz (OC) for ultra-fast responsiveness. The motherboard features Wi-Fi 6E and Bluetooth 5.3, ensuring lightning-fast wireless networking and seamless device pairing. For gamers and professionals, 2.5 Gigabit LAN delivers lag-free gaming and high-speed data transfers. Its Micro ATX design makes it ideal for compact yet powerful PC builds, offering versatile expansion options. The inclusion of HDMI and DisplayPort outputs guarantees high-definition visuals, perfect for gaming, content creation, and multimedia tasks. With advanced cooling solutions and durable components, the ASRock B760M Pro-A WiFi ensures long-term stability and peak performance, making it an excellent choice for modern gaming rigs and professional workstations.
