| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel® Core™ Processors (Socket 1200) Digi Power design 5 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipset | Intel H410 | |
| Form Factor | Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm Solid Capacitor design |
|
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
|
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express 3.0 x 16 Slot 1 x PCI Express 3.0 x 1 Slot |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 1 x PCI Express 3.0 x 16 Slot 1 x PCI Express 3.0 x 1 Slot |
|
| Supported Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
|
| Maximum Memory | Max. capacity of system memory: 64GB | |
| Graphics | ||
| Graphics | -Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 -Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz -Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows OS -Supports up to 2 displays simultaneously |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 1.4 | |
| USB (s) | 1 x USB 2.0 1 x USB 3.2 Gen1 |
|
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug | |

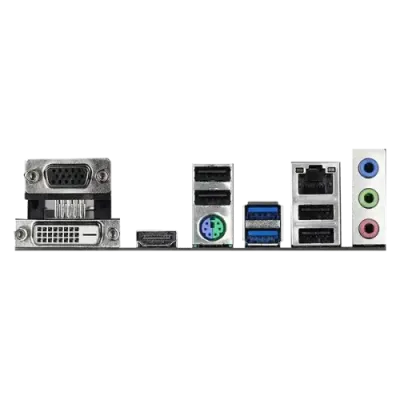

| Internal I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 4 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Others | D-Sub (s) 1 x D-Sub Port DVI-D (s) 1 x DVI-D Port |
|
| Others | ||
| Special Features | Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB |
|
| Bundled Software | Software- ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash |
|
| Warranty Details | ||
| Warranty Details | 03 Years Warranty | |

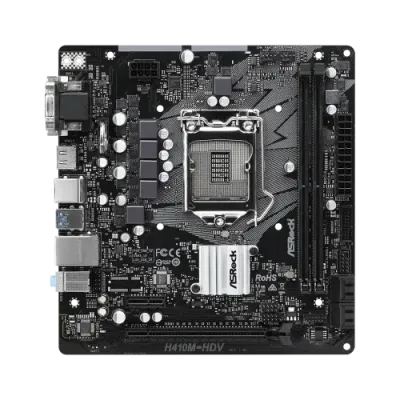

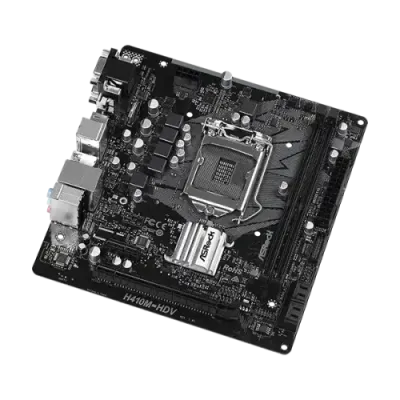

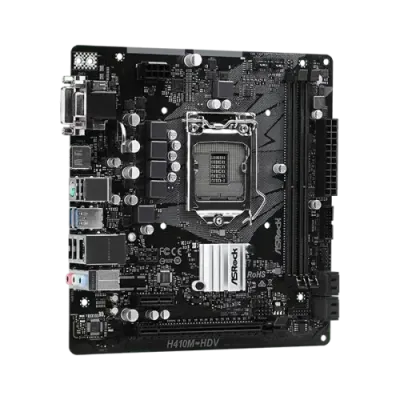

The ASRock H410M-HDV 10th Gen DDR4 Micro ATX Motherboard is a budget-friendly yet feature-packed motherboard designed for Intel 10th Gen Core processors with an LGA 1200 socket. It supports DDR4 memory up to 2933MHz, ensuring smooth multitasking and system responsiveness. With multiple display output options, including HDMI, D-Sub, and DVI, this motherboard offers great flexibility for different monitor setups. The presence of PCIe 3.0 x16 and PCIe 3.0 x1 slots allows for expansion with a dedicated GPU and other add-ons. The Realtek ALC887 7.1 CH HD audio codec ensures high-quality sound, making it ideal for gaming and entertainment. The motherboard also features USB 3.2 Gen1 ports for fast data transfers and a stable LAN connection for seamless online experiences. With its compact Micro ATX design, it fits well in various PC cases, making it an excellent choice for home and office users looking for a reliable and cost-effective motherboard.
