Pay cash discounted price and save
Pay cash discounted price and save
| Basic Information | ||
| Supported CPU | - Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors - Digi Power design - 10 Power Phase design |
|
| Chipset | AMD X570 | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design - 2oz Copper PCB |
|
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Gold Audio Jacks - Nahimic Audio |
|
| Expansion Slots | ||
| PCI | AMD Ryzen series CPUs (Vermeer, Matisse) - 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1)) AMD Ryzen series CPUs (Renoir, Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1) AMD Ryzen series APUs (Picasso) - 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1)) AMD X570 Chipset - 2 x PCI Express 4.0 x16 Slots (x4 (PCIE4) / x2 (PCIE6)) - 3 x PCI Express 4.0 x1 Slots - Supports AMD Quad CrossFireX and CrossFireX - 15μ Gold Contact in VGA PCIe Slot (PCIE1) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
| M.2 Socket | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso) - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DDR4 DIMM Slots | |
| Supported Memory | - AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series APUs (Renoir) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft® PlayReady |
|
| Others | 16GB | |

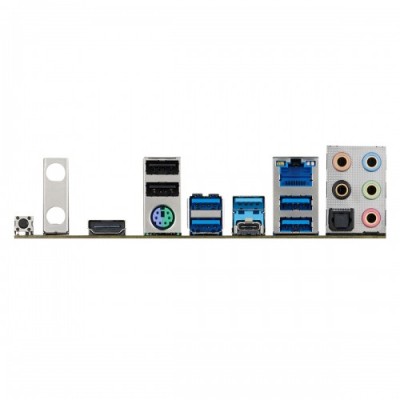

| Connector & Ports | ||
| HDMI | 1 x HDMI Port - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
|
| USB (s) | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s) - Supports Killer LAN Software - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
|
| Supported Storage | - 6 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso) - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Internal I/O Ports | - 1 x Power LED and Speaker Header - 2 x RGB LED Headers - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card only) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) - 1 x Clear CMOS Button |
|
| Others | ||
| Special Features | ASRock USB 3.2 Gen2 - ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 50A Dr.MOS - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Killer 2.5G LAN ASRock Lightning Gaming Port ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
| Bundled Software | Software - ASRock Polychrome SYNC - ASRock Key Master - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer |
|
| Warranty Details | ||
| Warranty Details | No Warranty | |

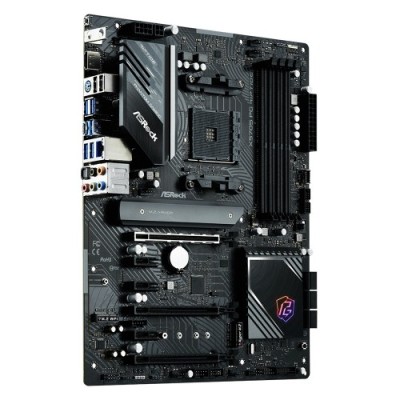

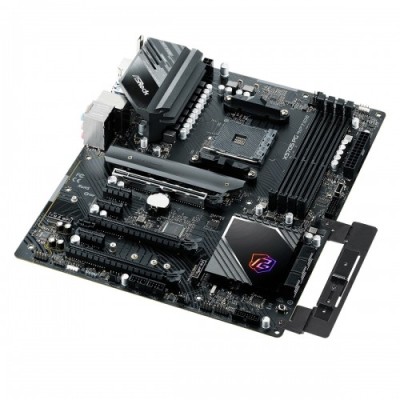

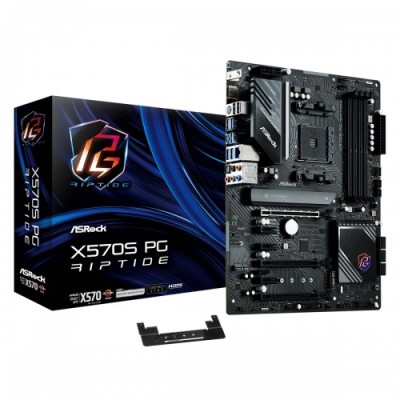

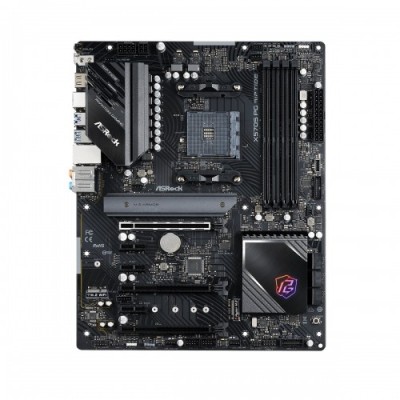

The ASRock X570S PG Riptide AMD AM4 ATX Motherboard is designed to push the limits of gaming and high-performance computing. Supporting Ryzen 2000, 3000, 4000G, and 5000 Series processors, it enables lightning-fast performance with enhanced power efficiency. With support for DDR4 5000+ MHz (OC), users can experience high-speed multitasking and gaming. Featuring three PCIe 4.0 x16 slots and three PCIe 4.0 x1 slots, it provides ample expansion options for GPUs, NVMe SSDs, and additional peripherals. The integrated HDMI port ensures high-definition display output, while the optimized power delivery and passive cooling system enhance stability and longevity. Built with durable components and premium PCB design, this motherboard is engineered for long-lasting performance. Whether you're building a high-end gaming PC or a professional workstation, the ASRock X570S PG Riptide delivers top-tier speed, reliability, and future-proof technology.
