| Basic Information | ||
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Xeon Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel W480 | |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch (30.5 cm x 23.4 cm) |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek ALC S1220A 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Audio Cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel W480 Chipset 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 |
|
| M.2 Socket | Total supports 2 x M.2 slots | |
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 3-Way CrossFireX Technology |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI |
|

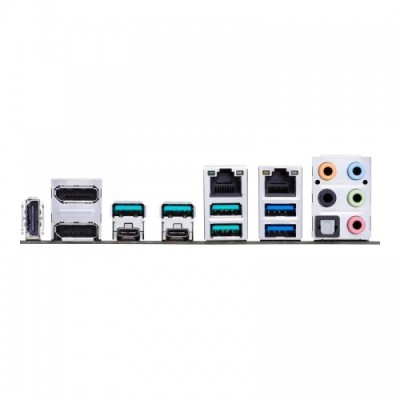

| USB (s) | Intel Thunderbolt 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-C) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 2 port(s)(4 x Type-A) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s) Thunderbolt: 2 x Intel Thunderbolt 3 ports(TypeC) support DisplayPort and Thunderbolt video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards' resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support |
|
| LAN Port (s) | Intel I225-LM 2.5Gb Ethernet Realtek RTL8117 |
|
| Wireless Communication module | ||
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel W480 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*4 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
|
| RAID | ||
| Audio | 5 x Audio jack(s) | |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
|
| TPM (Trusted Platform Module ) | ||
| Others | ||
| Others | ||
| Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED - ASUS Q-Shield - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Procool II - SafeSlot Out-of-band Management - BIOS Update Indicator LED - LAN Initialization Indicator LED |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 Performance And Power Saving Utility - TPU - EPU - Digi+ VRM - EZ update - Fan Xpert 4 - Turbo app IT Management software supported - ASUS Control Center Express(ACCE) AI Charger ASUS Turbo LAN WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
|
| Warranty Details | ||
| Warranty Details | 3 Years | |
| others | ||

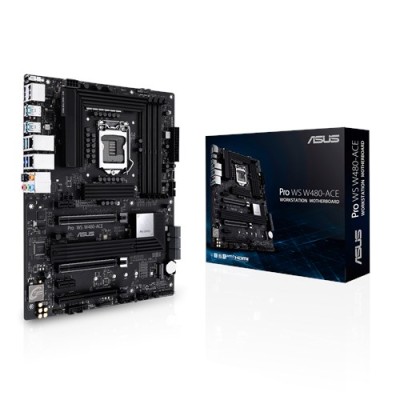

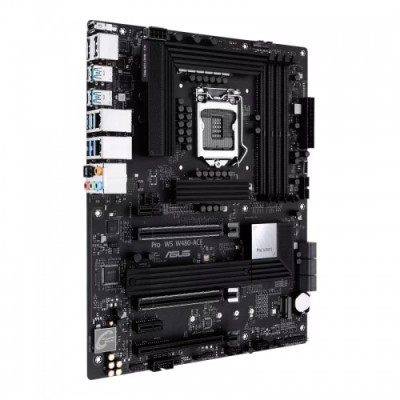

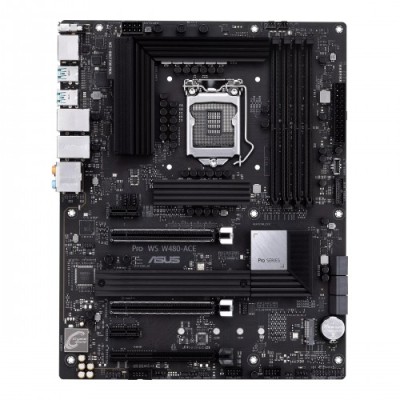

The Asus Pro WS W480-ACE Intel Workstation Motherboard is a high-end solution designed for professionals who require stability, performance, and reliability. Compatible with Intel Xeon W-1200 series processors and LGA 1200 socket CPUs, this workstation-class motherboard ensures exceptional computing power for engineering, content creation, and data-intensive applications.
Supporting up to 128GB of DDR4 memory across four DIMM slots, the Pro WS W480-ACE provides the necessary bandwidth for multitasking and high-performance workloads. With dual M.2 slots (22110) and PCIe expansion, users can take advantage of ultra-fast storage and flexible hardware configurations to enhance productivity.
Engineered with a fan-less VRM heatsink, this motherboard offers efficient thermal management to maintain stability under prolonged workloads. The high-quality build and robust power delivery system ensure reliable operation for mission-critical tasks.
Whether you're working with CAD applications, video rendering, or other professional workloads, the Asus Pro WS W480-ACE is the perfect choice for those seeking workstation-grade performance with long-term durability.
