| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel B760 Chipset | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Dedicated audio PCB layers - Audio cover |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | Total supports 3 x M.2 slots |
|
| Others | ||
| Memory | ||
| Type | DDR4 |
|
| Slots | 4 x DIMM |
|
| Supported Memory | 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC)/4266(OC) / 4000(OC)/3733(OC) / 3600(OC) / 3466(OC)/3400(OC) / 3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | Max. 128GB | |
| Others | ||
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port |
|
| USB (s) | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard |
|
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
|
| Audio | 5 x Audio jacks |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thunderbolt (USB4) header |
|
| TPM (Trusted Platform Module ) | ||
| Others | Display Port (s) 1 x DisplayPort |
|
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
|
| Warranty Details | ||
| Warranty Details | 3 years warranty | |
| others | ||

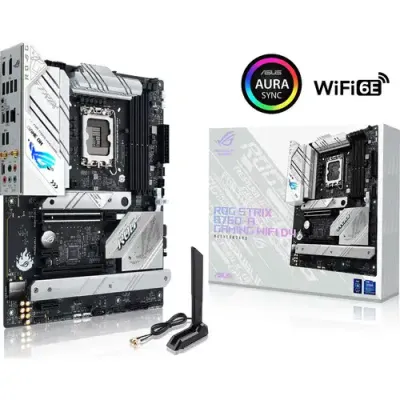

The ASUS ROG STRIX B760-A GAMING WIFI D4 ATX motherboard is designed for gamers and professionals looking for a balance of performance, aesthetics, and cutting-edge connectivity. With support for Intel 14th, 13th, and 12th Gen processors using the LGA 1700 socket, this motherboard offers incredible computing power for gaming and multitasking.
Equipped with four DIMM slots, it supports up to 128GB of DDR4 RAM, allowing for smooth gameplay, high-speed data processing, and efficient multitasking. The motherboard provides high-definition visuals with both DisplayPort and HDMI outputs, making it perfect for multi-monitor setups.
For seamless connectivity, the ASUS ROG STRIX B760-A GAMING WIFI D4 includes Realtek 2.5Gb Ethernet and Wi-Fi 6E, ensuring ultra-fast network speeds and low-latency gaming. Its robust power delivery and advanced cooling solutions, including AI-powered fan controls and VRM heatsinks, help maintain system stability under heavy workloads.
The motherboard also features ASUS’ signature ROG aesthetics with customizable RGB lighting, PCIe 4.0 support for high-speed SSDs and GPUs, and reinforced slots for durability. ASUS' exclusive AI-powered optimizations enhance gaming and system efficiency, making it a perfect choice for esports players and gaming enthusiasts.
With a sleek and futuristic design, combined with premium hardware and next-gen connectivity, the ASUS ROG STRIX B760-A GAMING WIFI D4 motherboard is the ideal foundation for building a high-performance gaming PC. Whether you're gaming, streaming, or creating content, this motherboard delivers an immersive and lag-free experience.
