| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel B760 Chipset | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode. |
|
| M.2 Socket | Total supports 3 x M.2 slots | |
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | Max. 128GB |
|
| Others | ||
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet TUF LANGuard |
|
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 | |
| Audio | 5 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
|
| TPM (Trusted Platform Module ) | ||
| Others | Display Port (s) 1 x DisplayPort |
|
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Details | ||
| Warranty Details | 3 years warranty | |
| others | ||

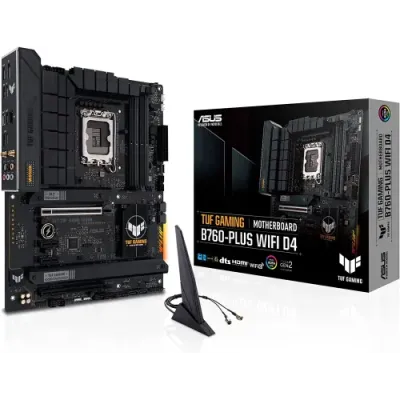

The Asus TUF GAMING B760-PLUS WIFI D4 ATX motherboard is a powerhouse built for gamers and enthusiasts looking for superior performance, stability, and durability. Designed for Intel’s 14th, 13th, and 12th Gen processors, it supports LGA 1700 CPUs, offering exceptional computing power for gaming, streaming, and productivity.
This motherboard is equipped with four DIMM slots, supporting up to 128GB of DDR4 RAM with high-speed performance, ensuring smooth multitasking and responsiveness. With PCIe 4.0 support, users can experience ultra-fast data transfer speeds, making it ideal for high-performance SSDs and GPUs.
Network connectivity is a key highlight of the TUF GAMING B760-PLUS WIFI D4, featuring Realtek 2.5Gb Ethernet and built-in Wi-Fi 6 for seamless online gaming, low-latency streaming, and fast downloads. Whether you're gaming or working remotely, these features provide a stable and reliable connection.
For graphics, the motherboard offers versatile display options with one DisplayPort and two HDMI ports, supporting high-resolution output for immersive visuals. Whether for gaming, video editing, or professional workloads, this motherboard ensures a smooth and stunning display experience.
As part of the ASUS TUF series, this motherboard is engineered for durability with military-grade components, enhanced power solutions, and comprehensive cooling mechanisms. The robust build ensures long-term reliability, making it a perfect choice for gaming setups that demand stability and endurance.
With its combination of high-speed connectivity, gaming-optimized features, and TUF-grade durability, the Asus TUF GAMING B760-PLUS WIFI D4 ATX motherboard is an excellent choice for gamers and power users looking to build a solid and future-proof PC.
