Cisco Catalyst C1000-24P-4X-L Switch | 24x PoE+ Ports + 4x 10G SFP+ | LAN Base

Description

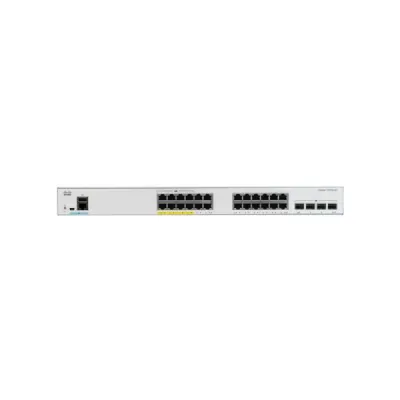

The Cisco Catalyst C1000-24P-4X-L is a 24-port PoE+ Gigabit Ethernet switch designed for power-hungry access layer deployments. Featuring 4x 10G SFP+ uplinks and a robust 370W PoE budget, this switch delivers high-performance connectivity for IP phones, cameras, and wireless access points while enabling 10G backbone connections.

Hardware Specifications:

PoE+ Ports	24 x 10/100/1000BASE-T RJ45
PoE Budget	370W total (30W per port max)
Uplinks	4 x 10G SFP+ (non-combo)
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	Internal 450W AC (100-240V)

Key Features:

High-Power PoE+ - 30W per port for APs, cameras, and digital signage
10G Uplinks - 4x SFP+ ports for high-bandwidth aggregation
LAN Base Software - ACLs, QoS, static routing, and enhanced security
FlexStack-Plus - Stack up to 8 units with 40G stack bandwidth
Cisco DNA Ready - Centralized management via DNA Center
Energy Efficiency - EEE 802.3az and Cisco EnergyWise

PoE Capabilities:

PoE Standard	Power per Port	Supported Devices
IEEE 802.3af (PoE)	15.4W	IP phones, basic APs
IEEE 802.3at (PoE+)	30W	High-end APs, PTZ cameras
Cisco UPOE*	60W (with upgrade)	Thin clients, digital signage

* Requires C1000-UPOE-65W upgrade module

Software Capabilities (LAN Base):

Security

802.1X with MAB
MACsec 256-bit encryption
Port security
DHCP snooping
IP Source Guard

Advanced Switching

Static routing (IPv4/IPv6)
VLANs (4094 max)
LACP link aggregation
Rapid PVST+
IGMP snooping

Management

Cisco DNA Center
Web GUI & CLI
SNMP v3
sFlow monitoring
USB config backup

Deployment Scenarios:

High-Density Wi-Fi - Power 802.11ax APs with 30W PoE+
IP Surveillance - Support PTZ cameras with IR heaters

Digital Workspaces - Power PoE-powered monitors and laptops
Retail Environments - Connect POS systems and digital signage

Stacked Networks - 40G stack bandwidth via SFP+ ports
Smart Buildings - IoT device connectivity with PoE

Technical Specifications:

Performance

MAC Address Table: 16,000 entries
Jumbo Frames: 9KB support
Latency: <3.5 μs
Buffer Memory: 12MB shared

Environmental

Operating Temperature: 0°C to 45°C
Storage Temperature: -40°C to 70°C
Humidity: 10% to 90% non-condensing
Noise Level: 0 dBA (fanless)
Dimensions: 17.3 x 11.2 x 1.7 in

Compatibility Notes:

Requires Cisco IOS XE Gibraltar 16.12.1 or later
Supported SFP+ modules: SFP-10G-SR, SFP-10G-LR, SFP-10G-T
For higher PoE budgets, see C1000-48P-4X-L model

Why Choose This Switch?

10G uplinks for future-proofing

370W

Total PoE budget for high-power devices

Switches stackable with 40G bandwidth
