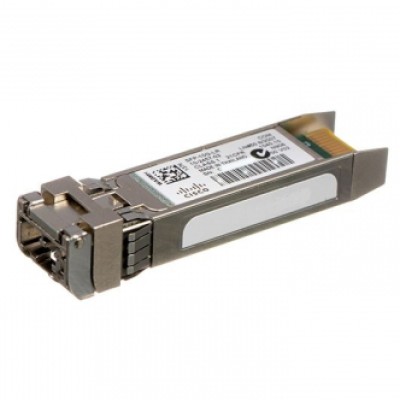

Cisco SFP-10G-LR Transceiver | 10GBASE-LR | 10km Single-Mode Fiber

Cisco SFP-10G-LR Transceiver | 10GBASE-LR | 10km Single-Mode Fiber

Price:11,700
Regular Price: 14,300
Brand: Cisco
Status: In Stock
SKU: SPK-CISCO-SFP-10G-LR
MPN: SFP-10G-LR
৳11,700
৳2,600 off
৳14,300

Main Features

  • 10GBASE-LR compatibility for 10 Gigabit Ethernet
  • 1310nm wavelength for single-mode fiber
  • Up to 10km transmission distance
  • Digital Optical Monitoring (DOM) support
  • Hot-swappable SFP+ form factor
Show More

Payment Methods

৳11,700

Pay cash discounted price and save

Pay cash discounted price and save

remove add
  • Specification
  • Description
  • Reviews

Description

The Cisco SFP-10G-LR is a high-performance SFP+ transceiver designed for 10 Gigabit Ethernet applications over single-mode fiber (SMF). Operating at 1310nm wavelength with a reach of up to 10 kilometers, this module provides reliable long-distance connectivity for campus backbones, metro networks, and data center interconnects.

Technical Specifications:

Parameter Specification
Form Factor SFP+ (SFF-8431 compliant)
Fiber Type Single-Mode Fiber (SMF)
Wavelength 1310nm
Max Distance 10 km (6.2 miles)
Data Rate 10.3125 Gbps (10GbE)
Connector Duplex LC
Power Consumption < 1.5W typical
Compliance IEEE 802.3ae, ITU-T G.652

Key Features:

  • Long-Reach Connectivity - Ideal for campus backbones and metro networks
  • Advanced Diagnostics - Digital Optical Monitoring (DOM) for real-time performance tracking
  • High Reliability - Industrial temperature range (-40°C to 85°C) available
  • Broad Compatibility - Works with Cisco Nexus, Catalyst, ASR, and UCS platforms
  • Low Power Design - Energy-efficient operation reduces operational costs
Fiber Compatibility:

Optimized for standard G.652 single-mode fiber with:

  • 9/125μm core/cladding diameter
  • Typical attenuation: 0.4 dB/km at 1310nm
  • Dispersion: ≤ 3.5 ps/(nm·km)

Compatible Platforms:

Switches
  • Nexus 9000/7000/5000/3000
  • Catalyst 9500/9400/9300
  • MDS 9000 SAN switches
Routers
  • ASR 9000/1000 Series
  • ISR 4400 Series
  • NCS 5000 Series
Servers & Storage
  • UCS B-Series/C-Series
  • NetApp FAS/AFF Series
  • Pure Storage FlashArray

Optical Performance Specifications:

Parameter Transmitter Receiver
Power Range -8.2 to +0.5 dBm -14.4 to +0.5 dBm
Sensitivity N/A -12.6 dBm (typical)
Optical Budget 7.1 dB (minimum)
Extinction Ratio 3.5 dB (minimum) N/A

Typical Applications:

Campus Backbones

Connect buildings across university campuses or corporate parks.

Metro Ethernet

Cost-effective connectivity for service provider access networks.

Data Center Interconnect

Link geographically separated data centers within 10km range.

Important Notes:
  • Requires APC (Angled Physical Contact) connectors for optimal performance
  • For distances beyond 10km, use SFP-10G-ER (40km) or SFP-10G-ZR (80km)
  • Not compatible with multi-mode fiber - use SFP-10G-SR for MMF applications
  • Minimum Cisco NX-OS: 5.2(1)N1(1) for Nexus switches
Environmental Specifications
  • Commercial Temperature Range: 0°C to 70°C
  • Industrial Temperature Range: -40°C to 85°C (SFP-10G-LR-C)
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 5% to 95% non-condensing
Certifications & Compliance
  • RoHS 6/6 compliant
  • FCC Part 15 Class B
  • CE Marked
  • UL Certified
  • IEEE 802.3ae compliant

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of Long-Reach 10GbE SFP+ for Enterprise and Service Provider Networks in Bangladesh?

The best price of Long-Reach 10GbE SFP+ for Enterprise and Service Provider Networks in Bangladesh is 11,700. You can buy the Long-Reach 10GbE SFP+ for Enterprise and Service Provider Networks at best price from our website.
