| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors | |
| Chipset | AMD A520 | |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | Integrated in the CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 |
|
| M.2 Socket | Integrated in the CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) |
|
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM sockets | |
| Supported Memory | AMD Ryzen 5000 series Processors/ 3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5300(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 64 GB (32 GB single DIMM capacity) | |
| Others | ||
| Graphics | ||
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DisplayPort port, supporting a maximum resolution of 5120 x 2880 @60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time |
|
| Others | Max Shared Memory 16 GB |
|
| Connector & Ports | ||
| HDMI | 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz | |

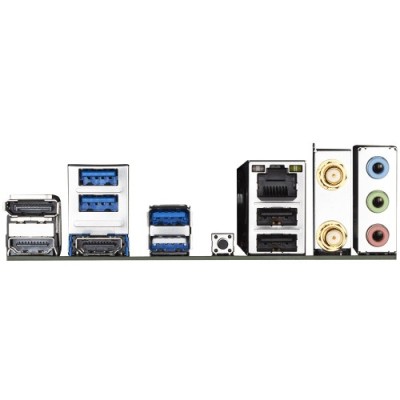

| USB (s) | Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/ 1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Wireless Communication module | Intel Wi-Fi AC 3168 WIFI 802.11a/ b/ g/ n/ ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate |
|
| Supported Storage | Integrated in the CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| RAID | ||
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | Display Port (s) 1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz |
|
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 Years |
|
| others | ||

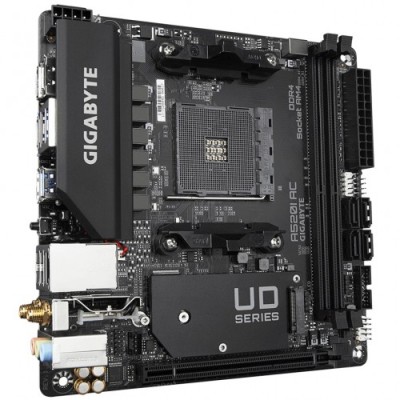

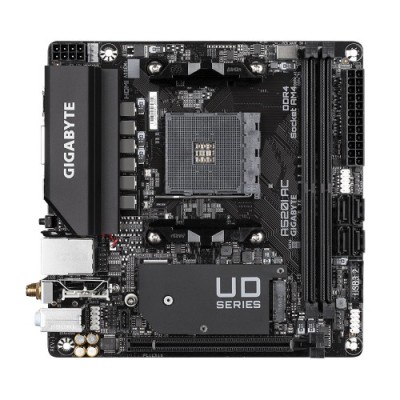

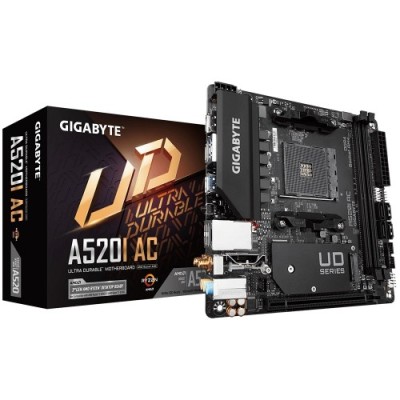

The GIGABYTE A520I AC AM4 Mini-ITX Motherboard is a powerful and space-saving solution for gamers and PC builders looking for high efficiency in a compact form factor. Designed to support AMD Ryzen 5000 Series, 3rd Gen Ryzen, and 3rd Gen Ryzen with Radeon Graphics processors, this motherboard ensures exceptional speed, efficiency, and reliability for various applications, including gaming, streaming, and productivity tasks.
Despite its Mini-ITX size, the A520I AC delivers impressive power stability with its Direct 6 Phases Digital VRM, allowing for smooth performance even under demanding workloads. It features GIGABYTE Exclusive 8118 Gaming LAN, ensuring low-latency connectivity, and built-in Wi-Fi, which provides fast and stable wireless networking for a clutter-free setup.
Durability is a key focus, and this motherboard includes Anti-Sulfur Resistors Design, which helps extend longevity by protecting against corrosion and environmental factors. Additionally, its robust build quality and efficient power management make it an ideal choice for those seeking a reliable and high-performance Mini-ITX motherboard for small-form-factor gaming PCs, media centers, and portable workstations.
For those looking to build a compact yet powerful PC, the GIGABYTE A520I AC offers the perfect balance of performance, connectivity, and reliability in a miniature yet feature-packed motherboard.
