| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
|
| Chipset | AMD B550 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
|
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 3.0 x2 mode 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
|
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs |
|
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM slots | |
| Supported Memory | AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 128GB (32 GB single DIMM capacity) | |
| Others | ||
| Graphics | ||
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
|
| Others | Max Shared Memory 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz | |
| USB (s) | Chipset: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 3 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Wireless Communication module | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
|
| RAID | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/ 4/ 5.1/ 7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |

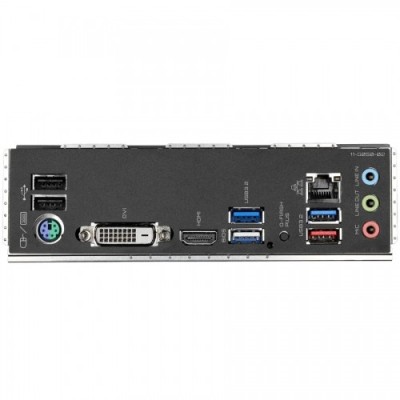

| Others | DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz |
|
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 Years |
|
| others | ||

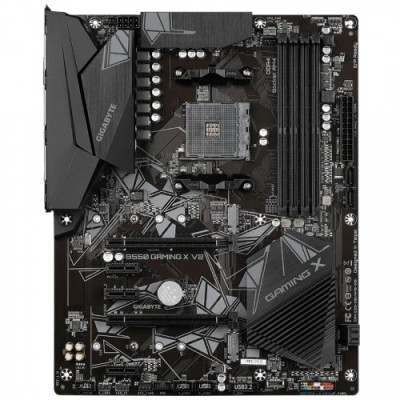

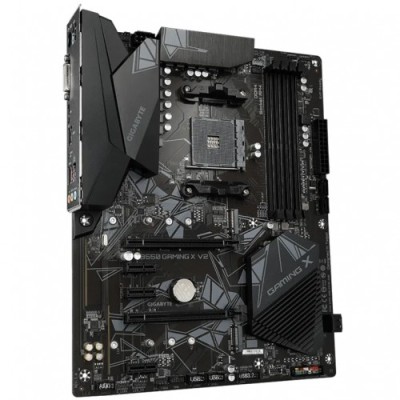

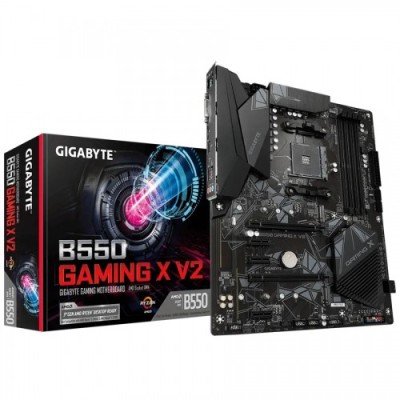

The GIGABYTE B550 GAMING X V2 AM4 ATX Motherboard is a feature-packed and high-performance solution for gamers and PC builders seeking reliability, power, and efficiency. Built on the AMD B550 chipset, this motherboard supports AMD Ryzen 5000, 3rd Gen, and 3rd Gen with Radeon Graphics processors, offering top-tier processing power for gaming, content creation, and demanding multitasking workloads.
Equipped with GIGABYTE Exclusive 8118 Gaming LAN, the B550 GAMING X V2 ensures optimized network performance with low latency, providing a smooth online gaming and streaming experience. Its 10+3 Phases Pure Digital VRM enhances power efficiency and thermal management, ensuring stable and consistent performance even under heavy loads.
For speed enthusiasts, this motherboard features Ultra-Fast NVMe PCIe slots, allowing for lightning-fast storage speeds that significantly reduce game load times and improve system responsiveness. The ATX form factor provides ample expansion options, making it ideal for users who need multiple GPU setups, high-speed connectivity, and future-proof features.
Whether you're assembling a high-performance gaming rig or a powerful productivity workstation, the GIGABYTE B550 GAMING X V2 offers next-generation performance, robust build quality, and gaming-centric features to take your computing experience to the next level.
