| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors L3 cache |
|
| Chipset | Intel B860 Express Chipset | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2) |
|
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM |
|
| Supported Memory | Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules | |
| Maximum Memory | Up to 256 GB (64 GB single DIMM capacity) |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support) Support for up to quad-display at the same time |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 2 x HDMI |
|
| USB (s) | CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
|
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 1 x front panel audio header 2 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | 1 x DisplayPort |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 Year Warranty | |
| others | ||

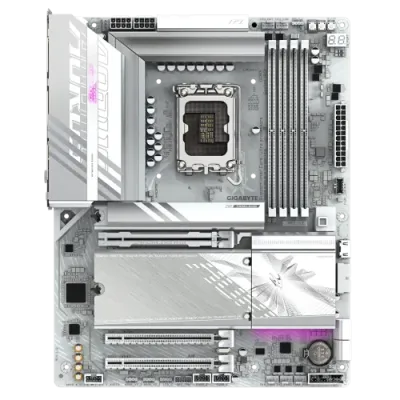

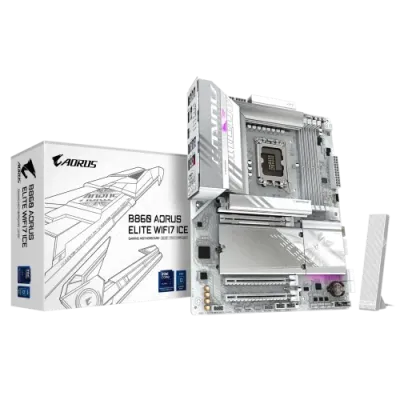

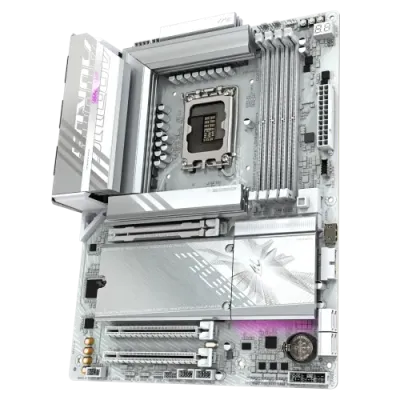

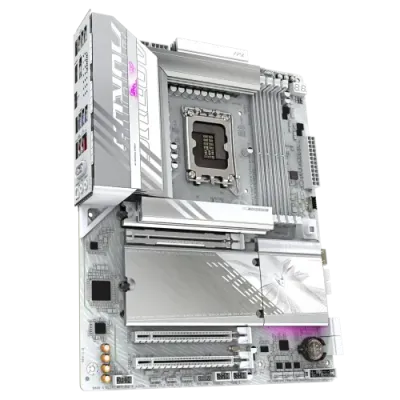

The Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard is a powerhouse designed to take on the most demanding gaming, content creation, and professional computing tasks. Built for Intel Core Ultra Processors (LGA 1851 socket), this motherboard offers cutting-edge performance and unrivaled expandability.
With support for DDR5 memory of up to 256GB and an overclocking capacity of 9200MHz, this motherboard is optimized for extreme speed and multitasking efficiency. Whether you're running memory-intensive applications or pushing your system to the limit in gaming, the B860 AORUS ELITE WIFI7 ICE ensures smooth performance.
The B860 AORUS ELITE WIFI7 ICE motherboard comes with PCIe 5.0 support, allowing you to install next-gen graphics cards and NVMe drives that demand high bandwidth. With 3x M.2 slots, you can install high-speed SSD storage for fast load times, quick data access, and improved system responsiveness.
For connectivity, this motherboard offers the latest technologies, including Intel Wi-Fi 7, Bluetooth 5.4, and Thunderbolt 4. Intel Wi-Fi 7 ensures the fastest wireless speeds and lowest latency, while Bluetooth 5.4 allows for seamless connections with peripherals. The Thunderbolt 4 port provides USB4 Type-C with DisplayPort support, enabling you to connect multiple high-resolution displays and transfer data at lightning speeds.

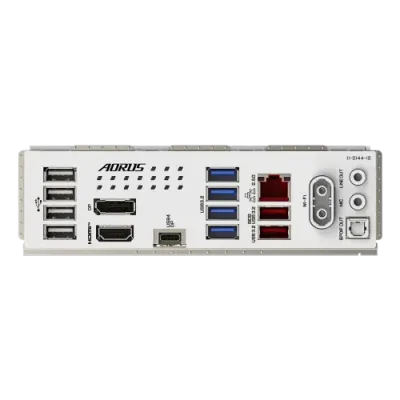

Visual outputs are handled by 2x HDMI, 1x DisplayPort, and Thunderbolt 4, giving you flexibility for multi-monitor setups and support for high-definition content. Whether you're gaming, streaming, or editing high-quality videos, this motherboard provides all the video output options you need.
Designed with advanced thermal solutions, the B860 AORUS ELITE WIFI7 ICE keeps your system cool, even during intense workloads. Gigabyte's Ultra Durable technology ensures that your motherboard remains reliable for years to come, even in the most demanding scenarios.
From gaming to content creation, the Gigabyte B860 AORUS ELITE WIFI7 ICE ATX Motherboard offers the ultimate performance and future-proof features, making it the ideal choice for high-end systems. Upgrade your setup with this motherboard for a fast, stable, and future-ready computing experience.
