| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors |
|
| Chipset | AMD X570 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
|
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek® ALC1220-VB codec ESS SABRE9118 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Others | ||
| Expansion Slots | ||
| PCI | Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only. |
|
| M.2 Socket | 3 x M.2 Socket 3 connectors | |
| Others | ||
| Memory | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM sockets | |
| Supported Memory | 3rd Generation AMD Ryzen™ processors: Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB | |
| Others | ||
| Graphics | ||
| Graphics | Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | ||

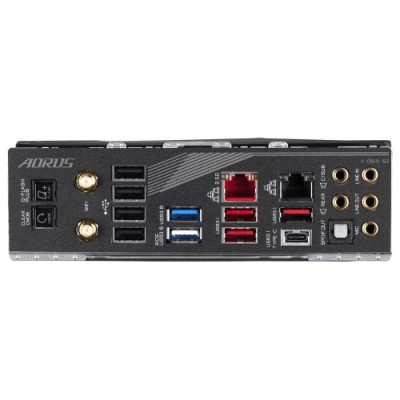

| USB (s) | 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
|
| LAN Port (s) | 2 x RJ-45 ports | |
| Wireless Communication module | ||
| Supported Storage | ||
| RAID | ||
| Audio | 5 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches 1 x Clear CMOS jumper Voltage Measurement Points |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Others | ||
| Special Features | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker USB TurboCharger Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license) |
|
| Warranty Details | ||
| Warranty Details | 03 years | |
| others | ||

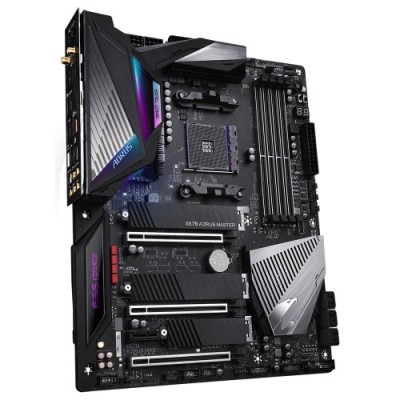

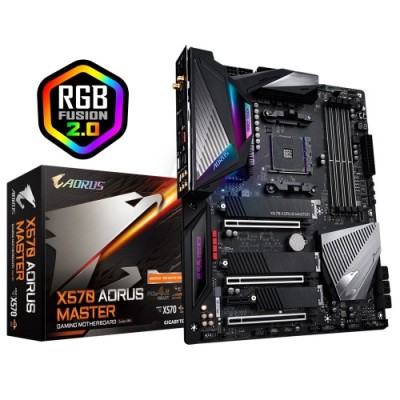

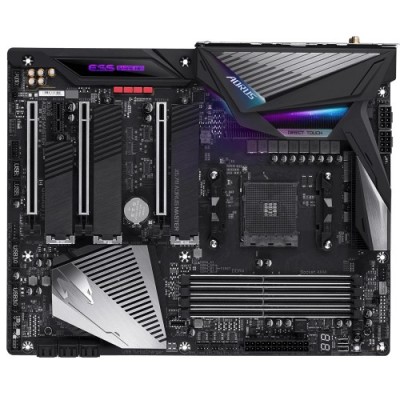

The Gigabyte X570 AORUS MASTER AMD ATX Motherboard is a high-performance powerhouse designed to unlock the full potential of AMD Ryzen 5000, 2nd, and 3rd Generation processors. Featuring the AMD X570 chipset, this motherboard supports cutting-edge technologies, including PCIe 4.0 for ultra-fast data transfer and high-end graphics performance. With four DDR4 DIMM slots, users can install high-speed memory for smooth gaming, rendering, and multitasking. Built with durability in mind, it offers an advanced thermal solution with an integrated heatsink and efficient cooling technology to maintain optimal system temperatures under heavy loads. The ATX form factor provides ample room for expansion, ensuring compatibility with the latest GPUs, storage solutions, and connectivity options. Designed for gamers and professionals alike, the Gigabyte X570 AORUS MASTER delivers exceptional power, stability, and efficiency, making it the perfect choice for those who demand high-end performance from their PC build.
