| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B520 | |
| Form Factor | Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
|
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x1 slot 1x PCIe x16 slot |
|
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Memory | ||
| Type | Dual-channel memory architecture | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
|
| Others | Max Shared Memory: 16GB |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz | |
| USB (s) | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN controller | |
| Supported Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1xTPM module connector | |
| Others | DVI-D (s) 1x DVI-D port, maximum resolution of 1920x1200@60Hz |
|
| Warranty Details | ||
| Warranty Details | 03 Years Warranty | |

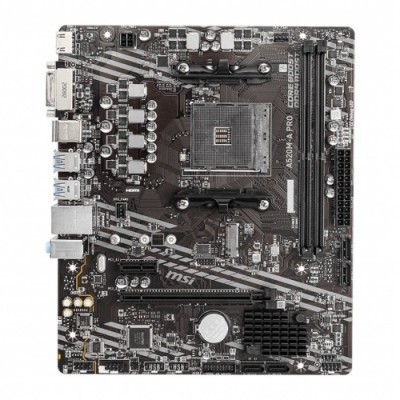

The MSI A520M-A Pro AM4 Micro-ATX Motherboard is a high-value choice for users seeking a reliable and budget-friendly solution in Bangladesh. Compatible with AMD Ryzen 5000, 4000G series, and 3rd Generation Ryzen processors, this motherboard offers stable and efficient performance for everyday computing, gaming, and productivity.
Supporting DDR4 memory up to 4600(OC) MHz, the A520M-A Pro ensures fast and smooth operation, even with more demanding applications. The Core Boost technology provides increased power delivery to ensure optimal performance for your system.
With Turbo M.2, this motherboard delivers lightning-fast storage performance, perfect for gaming and high-speed applications. The Audio Boost feature provides enhanced sound quality, giving you an immersive experience for both gaming and entertainment.
Designed with 2OZ thickened copper PCB, the MSI A520M-A Pro motherboard ensures durability and reliable performance for long-term use.
Get the MSI A520M-A Pro motherboard at the best price in Bangladesh from systempackbd. Order now for fast delivery, expert service, and premium support.
Get specific details about this product from customers who own it.
