| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors | |
| Chipset | AMD B550 Chipset | |
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| BIOS | ||
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1 2x PCIe 3.0 x1 slots |
|
| M.2 Socket | 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage device |
|
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4x DDR4 memory slots | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933 MHz by JEDEC Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
|
| Maximum Memory | 128GB | |
| Others | ||
| Graphics | ||
| Graphics | 1x VGA port, supports resolution of 2048 x 1536 @ 50Hz, 2048 x 1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz Support HDCP 1.4 & 2.3 |
|
| Others | Max Shared Memory 16GB |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz | |
| USB (s) | AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1x Realtek RTL8111EPV 1Gbps LAN controller | |
| Wireless Communication module | ||
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
|
| RAID | ||
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
|

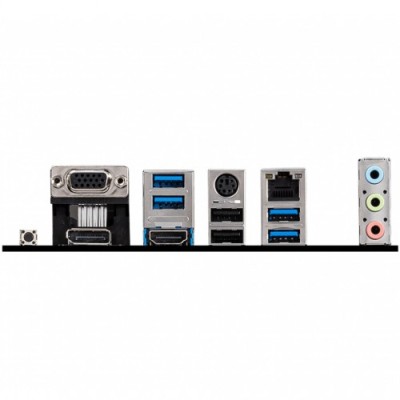

| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Others | ||
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 Years Warranty | |
| others | ||

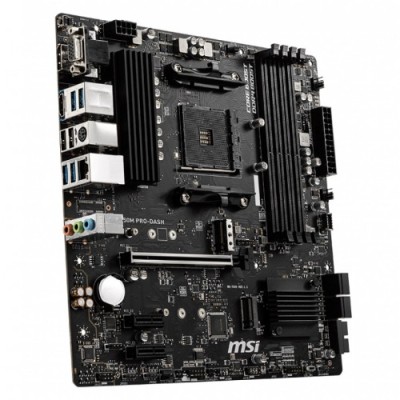

The MSI B550M PRO-DASH AM4 Micro-ATX Motherboard is a reliable and cost-effective solution for home office setups, business PCs, and budget gaming builds in Bangladesh. Supporting Ryzen 5000, 4000G, and 3000 series processors, this motherboard provides stable and efficient performance for everyday computing and multitasking.
With DDR4 memory support up to 2933 MHz, it ensures smooth operation for your PC’s tasks. The premium thermal solution helps maintain optimal temperatures, even during long work hours or light gaming sessions.
Designed to provide a lightning-fast computing experience, the B550M PRO-DASH is ideal for users seeking a cost-efficient yet reliable motherboard. Whether you're setting up a business workstation, home office, or budget gaming rig, this Micro-ATX motherboard offers excellent value.
Get the MSI B550M PRO-DASH at the best price in Bangladesh from systempackbd and enjoy fast delivery, expert service, and guaranteed quality. Order now!
