Pay cash discounted price and save
Pay cash discounted price and save
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
|
| Chipset | INTEL Z890 | |
| Form Factor | ATX (243.84mmx304.8mm) |
|
| BIOS | ||
| Audio | Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Others | ||
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 4x M.2 |
|
| Others | ||
| Memory | ||
| Type | ||
| Slots | DDR5 |
|
| Supported Memory | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB |
|
| Others | ||
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
|
| LAN Port (s) | Intel Killer E5000 5Gbps LAN |
|
| Wireless Communication module | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) |
|
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others | ||
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 Year warranty |
|
| others | ||

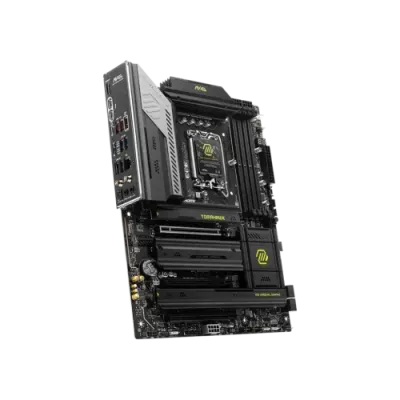

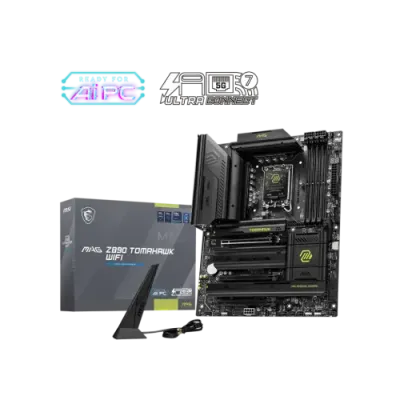

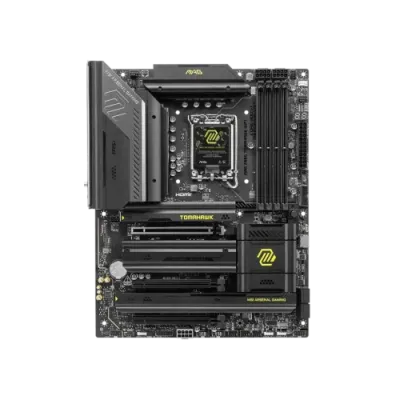

The MSI MAG Z890 TOMAHAWK WIFI LGA 1851 ATX Motherboard is designed for professionals, gamers, and content creators who demand top-notch performance and versatility. Featuring the powerful Intel Z890 chipset, this motherboard supports the latest Intel® Core™ Ultra Processors (Series 2) for unmatched speed and efficiency.
With DDR5 memory support up to 256GB and overclocking capabilities of 9200+ MT/s, it ensures blazing-fast performance for gaming and multitasking. The 4x M.2 slots with PCIe 5.0 and PCIe 4.0 compatibility provide rapid storage options, while Thunderbolt™ 4 ports enable high-resolution video output up to 8K at 60Hz.
This motherboard also comes equipped with Intel® Killer™ E5000 5G LAN, Wi-Fi 7, and multiple USB ports, including USB 20Gbps Type-C with fast charging support. The onboard Realtek ALC1220P Codec delivers 7.1-channel high-definition audio for an immersive sound experience. Build your dream setup with customizable RGB lighting and comprehensive cooling options.
Enjoy a 3-year warranty from systempackbd, ensuring peace of mind with your investment.
Get specific details about this product from customers who own it.
