Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳172,700
| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | INTEL B760 |
|
| Form Factor | E-ATX 310mmx304.8mm |
|
| Audio | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) |
|
| M.2 Socket | 7x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DIMM |
|
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6800+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 6000+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 256GB |
|
| Graphics | ||
| Graphics | Thunderbolt chip JHL8540 2x Thunderbolt4 (USB-C) ports Q’ty Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
|
| Connector & Ports | ||

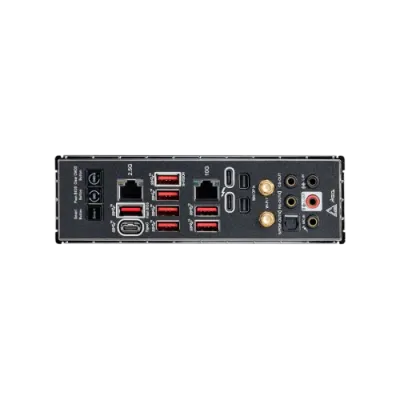

| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front) *To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit. **JUSB6 doesn’t support USB 2.0 and older USB devices. |
|
| LAN Port (s) | Marvell AQC113CS-B1-C 10Gbps LAN Intel 2.5Gbps LAN |
|
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
|
| Supported Storage | 7x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_7 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G *PCI_E2 slot will be unavailable when installing M.2 SSD in the M2_4 slot. **SATA3~4 will be unavailable when installing M.2 PCIe/ SATA SSD in the M2_3 slot. ***SATA5~8 will be unavailable when installing M.2 PCIe SSD in the M2_5 slot. ****SATA7~8 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Internal I/O Ports | INTERNAL IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 7x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 2x USB 3.2 Gen 2x2 Type C ports V-check point 1x ARGB+FAN Header (JAF_1) BACK PANEL PORTS: Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors Smart Button USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Warranty Details | ||
| Warranty Details | 3 years |
|

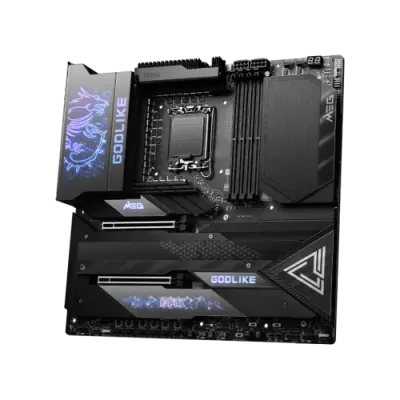

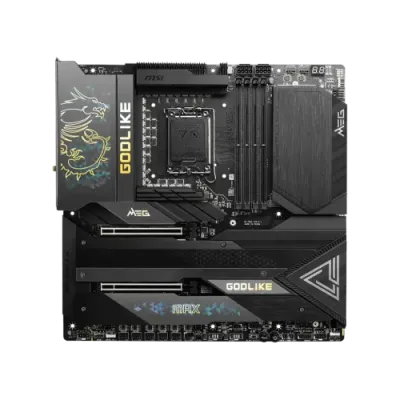

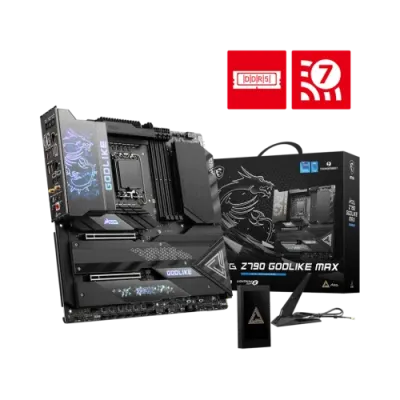

The MSI MEG Z790 GODLIKE MAX E-ATX Motherboard is designed for extreme enthusiasts, offering an unparalleled combination of speed, expandability, and connectivity. It supports Intel Core 14th/13th/12th Gen Processors (LGA 1700) and is powered by the Intel B760 chipset, ensuring exceptional processing performance for both professional and gaming applications.
Equipped with PCIe 5.0 and 2x PCI-E x16 slots, this motherboard supports cutting-edge storage and graphics configurations, ideal for high-end gaming and content creation. The motherboard also features 7x M.2 slots to meet the demands of users requiring high-capacity and fast SSD storage solutions.
Thunderbolt 4 ports support data transfer rates of up to 40Gbps with Thunderbolt devices and allow you to connect multiple monitors and peripherals with 8K display support. It also provides 10Gbps LAN through Marvell AQC113CS-B1-C and Intel 2.5Gbps LAN, alongside Wi-Fi 7 and Bluetooth 5.4, offering the fastest network speeds for modern workflows.
The Realtek ALC4082 Codec and ESS ES9280AQ Combo DAC/HPA ensure premium 7.1-Channel USB High-Performance Audio, delivering crystal-clear sound for both gaming and professional use. With customizable RGB LED connectors and Addressable RGB headers, the MSI MEG Z790 GODLIKE MAX offers an immersive aesthetic experience in addition to its technical prowess.
This motherboard also supports RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe storage devices, providing robust data redundancy and performance for demanding workloads.
Built with features that allow for significant overclocking potential and future-proofing, the MSI MEG Z790 GODLIKE MAX is the ultimate choice for users demanding the very best in performance, reliability, and connectivity.
