| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors | |
| Chipset | AMD B550 Chipset | |
| Form Factor | Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm |
|
| Expansion Slots | ||
| PCI | 1x PCIe 4.0 / 3.0 x16 slot | |
| M.2 Socket | 2x M.2 slots [Key M] M2 1 slot [from AMD Processor] Supports PCIe 4.0/3.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2 slot [from AMD B550 chipset] Supports PCIe 3.0x4 Supports 2280 storage devices |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x memory slots | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHZ 1DPC 2R max speed 4000 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports un-buffered memory |
|
| Maximum Memory | 64GB |
|
| Graphics | ||
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz | |
| Others | Max Shared Memory 2048 MB |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz | |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector] 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector] AMD Processor 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller | |
| Wireless Communication module | Intel AX200 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz [160MHz] up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.1 |
|
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots [Key M] M2 1 slot [from AMD Processor] Supports PCIe 4.0/3.0 x4 1 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2 slot [from AMD B550 chipset] Supports PCIe 3.0x4 Supports 2280 storage devices |
|
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper 4x EZ Debug LED |
|
| TPM (Trusted Platform Module ) | N/A | |
| Warranty Details | ||
| Warranty Details | 03 Years Warranty | |

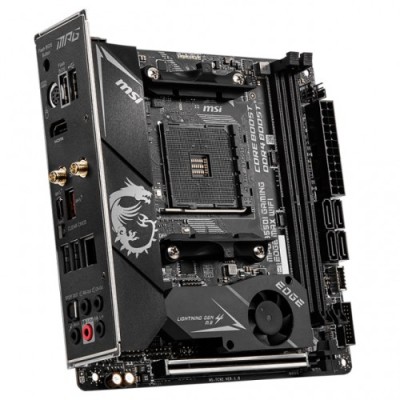

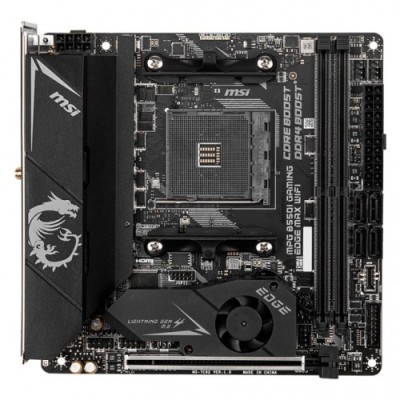

The MSI MPG B550I GAMING EDGE MAX AM4 Mini-ITX Motherboard is a compact and powerful motherboard designed for high-performance gaming and compact PC builds in Bangladesh. Supporting AMD Ryzen 5000, 4000G, and 3000 series processors, it ensures exceptional performance for gaming and content creation.
This Mini-ITX motherboard supports DDR4 memory up to 4600 MHz (OC), allowing for high-speed performance in a small form factor. The 8+2+1 Digital Power Design provides stable and reliable power delivery, ideal for overclocking and power-hungry applications.
With premium thermal solutions, including advanced heatsinks and cooling features, this motherboard ensures optimal temperature management for demanding tasks. Perfect for building a compact yet high-performance gaming rig, the B550I GAMING EDGE MAX combines premium components and cutting-edge technology.
Get the best price in Bangladesh at systempackbd and enjoy fast delivery, expert support, and top-quality service. Order now and build your dream gaming setup!
