| Basic Information | ||
| Supported CPU | Supports Intel® Core™ Ultra Processors (Series 2) |
|
| Chipset | INTEL Z890 |
|
| Form Factor | ATX (243.84mmx304.8mm) |
|
| BIOS | ||
| Audio | Realtek® ALC1220P Codec 7.1-Channel USB High Definition Audio Supports S/PDIF output |
|
| Others | ||
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 supports BIOS adjustment to x8+x4+x4* • PCI_E2 supports BIOS adjustment to x4+x4* |
|
| M.2 Socket | 5x M.2 |
|
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s |
|
| Maximum Memory | 256GB |
|
| Others | ||
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz* |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|

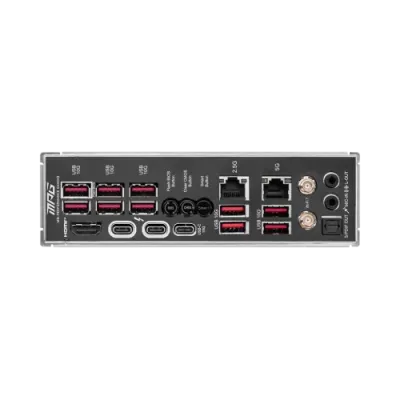

| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 10x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
|
| LAN Port (s) | 1x Intel® Killer™ E5000B 5G LAN 1x Intel® I226V 2.5G LAN |
|
| Wireless Communication module | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
| Supported Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G |
|
| RAID | •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others | ||
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED 1x EZ Digit Debug LED |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 Year Warranty |
|
| others | ||

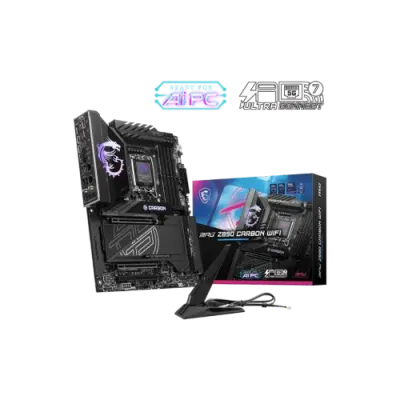

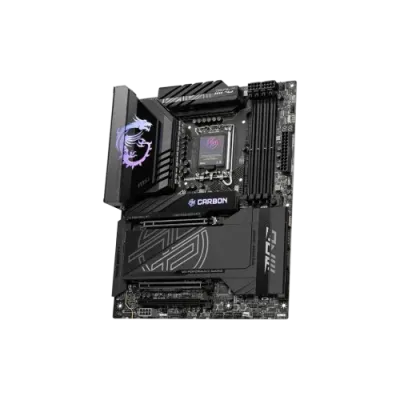

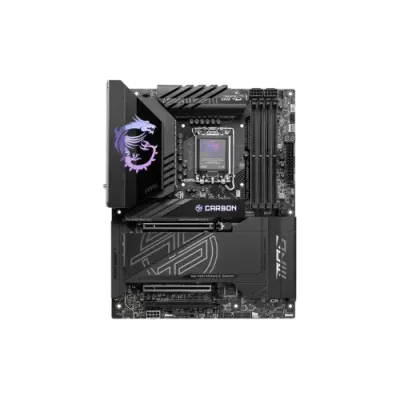

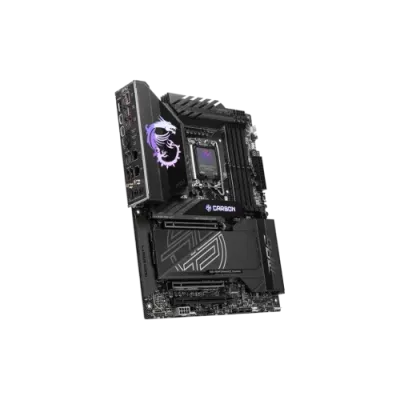

The MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard is engineered for high-performance gaming, overclocking, and content creation. With the Intel Z890 chipset, this motherboard supports the latest Intel® Core™ Ultra Processors (Series 2), offering exceptional power and speed.
Equipped with DDR5 memory support up to 256GB and overclocking speeds of 9200+ MT/s, this motherboard ensures peak performance for demanding applications. The 5x M.2 slots, including PCIe 5.0 support, deliver lightning-fast storage options. Advanced connectivity features include Wi-Fi 7, Intel® Killer™ E5000B 5G LAN, Thunderbolt™ 4, and multiple USB 20Gbps Type-C ports.
Designed for reliability and flexibility, the MPG Z890 CARBON WIFI features robust cooling support, customizable RGB lighting, and premium audio with Realtek ALC1220P Codec for immersive sound. Upgrade your setup with this state-of-the-art motherboard and enjoy a 3-year warranty from systempackbd.
Get specific details about this product from customers who own it.
