Basic Information | ||
Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
Chipset | AMD A620 | |
Form Factor | mATX 215mmx243.84mm |
|
Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
Expansion Slots | ||
PCI | 1x PCI-E x16 slot Supports x16 (For Ryzen 9000 and 7000 Series processors) Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports x4 (For Ryzen 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
M.2 Socket | 1x M.2 | |
Memory | ||
Type | DDR5 | |
Slots | 2x DIMMs | |
Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s 1DPC 1R Max speed up to 6800+ MHz 1DPC 2R Max speed up to 6000+ MHz |
|
Maximum Memory | 128GB | |
Graphics | ||
Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
Connector & Ports | ||
HDMI | 1x HDMI | |
USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
|
LAN Port (s) | Realtek RTL8125BG 2.5G LAN | |
Supported Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
|
RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
Audio | 1x Front Audio (JAUD) | |
Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
|
TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
Others | ||
Special Features | 4x EZ Debug LED | |
Warranty Details | ||
Warranty Details | 3 Years |

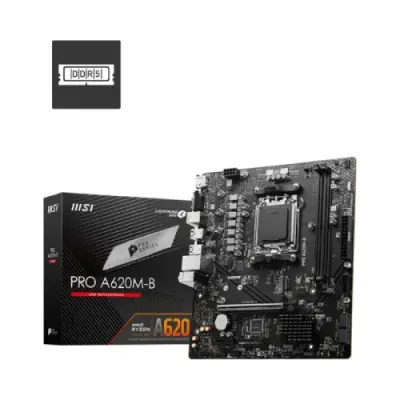

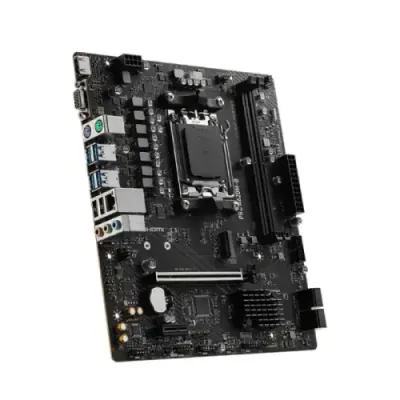

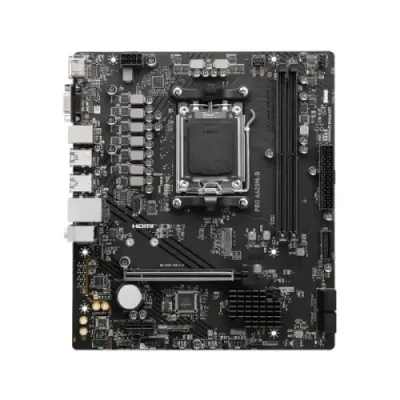

If you're stepping into the world of next-gen Ryzen builds without flexing your entire wallet, then the MSI PRO A620M-B is your ideal launchpad. This motherboard is like the quiet genius in class — small in size, but loaded with smart features that punch way above its price.
With full support for AMD Ryzen 9000, 8000, and 7000 series CPUs, DDR5 memory up to 6800+ MHz, and PCIe Gen 4 capabilities, it’s crafted for gamers, creators, and PC enthusiasts who want performance without the fluff. Plus, with a solid VRM setup, EZ Debug LEDs, and advanced storage options, this board offers stability and upgrade potential that lasts for years.
This motherboard is fully compatible with AMD’s AM5 socket, giving you access to the latest Ryzen desktop CPUs. Whether you're going full beast mode with the Ryzen 9 9950X or keeping it chill with a Ryzen 5 7500F, you're future-proofed.
The chipset also dynamically scales PCIe lane bandwidth depending on your CPU — meaning you’ll get x16 GPU lanes with high-end CPUs, and smart PCIe scaling with the Ryzen 8000 and 7000 families. It’s clever, power-efficient, and optimized for AMD's Zen 4 and upcoming architectures.
Don’t let the “entry-level” tag fool you — the A620 chipset delivers stable performance with PCIe 4.0, M.2 Gen4 SSD support, and enough bandwidth for modern-day gaming and productivity. It trims the excess features you probably don’t need while keeping all the core ones locked and loaded.
Perfect for budget builders who want real power without paying for features they’ll never use. A620 keeps your thermals cool, your system responsive, and your wallet happy.
Welcome to the DDR5 era! The A620M-B supports dual-channel DDR5 RAM up to 6800+ MHz (OC), delivering next-level memory bandwidth for gaming, editing, multitasking, and streaming. With 128GB max capacity across two DIMM slots, you're set for even the most memory-hungry workloads.
Whether you're gaming in 1440p, editing 4K footage, or just vibing with 30 Chrome tabs open — this board handles it all like a champ.
The board includes a PCIe 4.0 x16 slot (CPU-sourced), meaning your GPU gets full bandwidth for top-tier performance. From RTX 4060 Ti to RX 7900 XTX, you’ll enjoy ultra-smooth gameplay, minimal latency, and faster rendering. Depending on the CPU you pair it with, you’ll get x16, x8, or x4 bandwidth — smartly adjusted based on CPU tier.
It also offers a PCIe 3.0 x1 slot from the chipset, perfect for add-on cards like capture cards, sound cards, or Wi-Fi upgrades.
1x M.2 Slot (PCIe 4.0 x4) — blazing-fast SSD support up to 2280 length
4x SATA 6Gbps Ports — for traditional HDDs/SSDs
You can set up a fast boot SSD, a few terabyte SATA drives, and even RAID 0/1/10 if you're feeling spicy. All the flexibility, none of the compromise.
