Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳31,350
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) | |
| Chipset | INTEL B860 |
|
| Form Factor | ATX (243.84mmx304.8mm) |
|
| BIOS | ||
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Others | ||
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 3x M.2 |
|
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | 4x DDR5 UDIMM, Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s |
|
| Maximum Memory | Maximum Memory Capacity 256GB |
|
| Others | ||
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126 5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 Year warranty | |
| others | ||

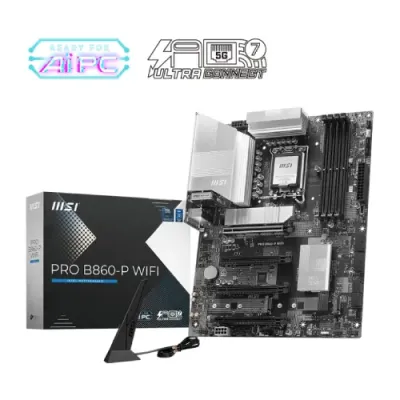

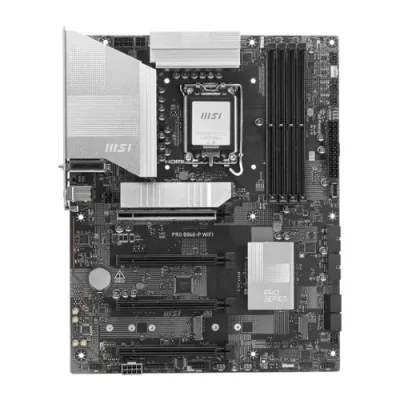

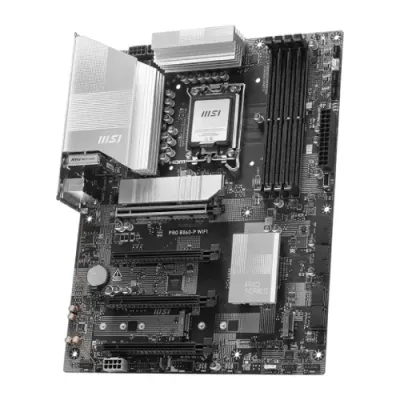

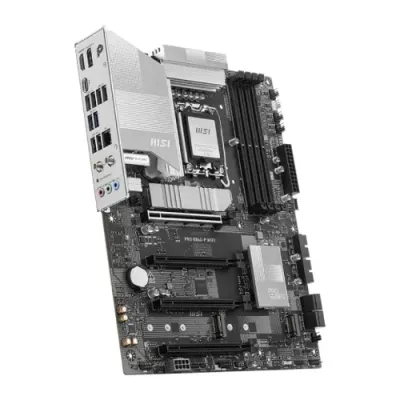

The MSI PRO B860-P WIFI LGA 1851 ATX Motherboard is built for demanding users and creators seeking cutting-edge performance. With support for Intel Core Ultra Series 2 Processors, this motherboard offers exceptional capabilities for both work and play. It features DDR5 memory support with speeds up to 8800 MT/s (OC), ensuring fast and efficient performance. PCIe 5.0 and Thunderbolt 4 ports provide unparalleled connectivity, while Intel Wi-Fi 7 and 5Gbps LAN ensure rapid, reliable internet connections. With 3x M.2 slots and up to 256GB DDR5 RAM, this motherboard delivers top-tier storage and performance options. Its advanced 7.1-Channel High Definition Audio is perfect for immersive experiences.
