| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron Processors LGA 1700 |
|
| Chipset | Intel H610 Chipset | |
| Form Factor | mATX 200mmx236.16mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 | |
| Supported Memory | Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|

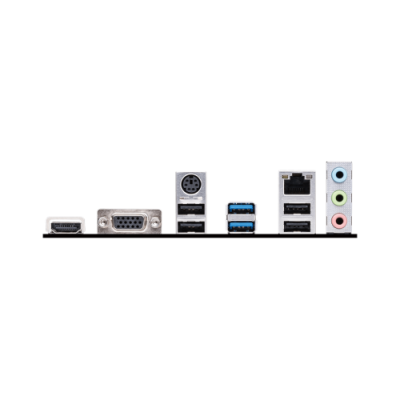

| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 with HDR port | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| LAN Port (s) | Realtek RTL8111H Gigabit LAN | |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
|
| Audio | 1x Front panel audio connector | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 1x 4-pin RGB LED connector 4x EZ Debug LED |
|
| Warranty Details | ||
| Warranty Details | 3 years | |
Boost your system's performance with the MSI PRO H610M-E mATX Motherboard available at FourStar IT. This feature-packed motherboard is designed to offer reliability and speed for users who demand the best, whether for gaming, content creation, or heavy multitasking. Featuring Intel Core 14th/13th/12th Gen processors compatibility, DDR5 memory, and enhanced graphics support, this motherboard is the perfect choice for building your next powerhouse.
Perfect for Gamers & Content Creators: The MSI PRO H610M-E mATX Motherboard is a versatile option for both gamers looking to upgrade their build and professionals who need a reliable platform for content creation. With strong graphics support, fast data speeds, and ample expansion options, it’s an ideal motherboard for a range of uses.
Get Yours Today! Visit FourStar IT to purchase the MSI PRO H610M-E mATX Motherboard and take your PC build to the next level!
