Basic Information | ||
Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 Processor socket LGA1700 |
|
Chipset | Intel H610 Chipset |
|
Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
|
BIOS | ||
Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
|
Others | ||
Expansion Slots | ||
PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
|
M.2 Socket | ||
Others | ||
Memory | ||
Type | DDR4 |
|
Slots | 2x DDR4 memory slots |
|
Supported Memory | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
|
Maximum Memory | Support up to 64GB | |
Others | ||
Graphics | ||

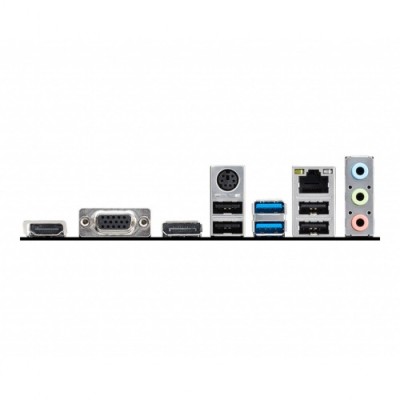

Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
|
Others | ||
Connector & Ports | ||
HDMI | 1x HDMI 2.1 |
|
USB (s) | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
|
LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
|
Wireless Communication module | ||
Supported Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
|
RAID | ||
Audio | ||
Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
|
TPM (Trusted Platform Module ) | 1x TPM module connector | |
Others | ||
Others | ||
Special Features | ||
Bundled Software | ||
Warranty Details | ||
Warranty Details | 3 years | |
others |

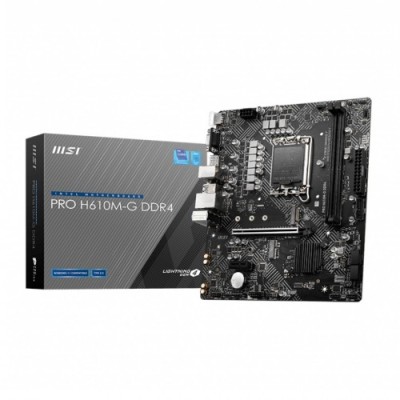

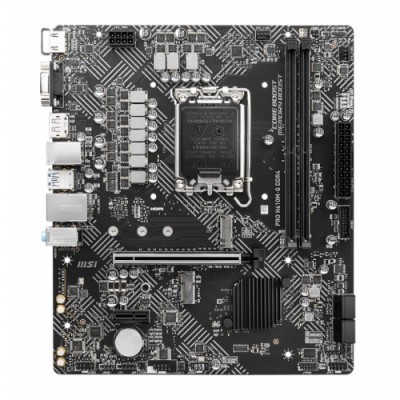

Upgrade your PC build with the MSI PRO H610M-G DDR4 Micro-ATX Motherboard, designed to support the latest Intel Core 14th/13th/12th Gen processors. Offering exceptional value and performance, this motherboard is perfect for users seeking reliability and expandability in a compact form factor. Whether you're building a powerful work PC or a multimedia setup, the MSI PRO H610M-G ensures efficient performance and connectivity.
Compatible with Latest Intel CPUs:
Supports 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors with the LGA 1700 socket for powerful computing.
Intel H610 Chipset:
This chipset ensures stable system performance and support for various PCIe slots and memory speeds for seamless multitasking and system expansion.
Dual DDR4 Memory Slots:
With 2 DDR4 memory slots, the board supports up to 64GB of RAM, enhancing overall system speed and efficiency for smooth multitasking.
High-Quality Graphics Support:
The HDMI 2.1 port supports 4K 60Hz resolution, while the VGA and DisplayPort 1.4 ports offer versatile display options for different monitors.
PCIe Expansion:
Includes a PCIe x16 slot (up to PCIe 4.0 x16) and a PCIe x1 slot, making it ideal for graphics cards and other expansion devices.
Multiple Storage Options:
Enjoy fast data access with 4 SATA 6Gb/s ports and an M.2 slot (up to PCIe 3.0 x4) for additional storage devices. Perfect for expanding your storage capacity.
RGB & LED Connectors:
Customize your PC with RGB LED and RAINBOW LED connectors, adding style to your build while keeping your system cool with EZ Debug LED indicators.
The MSI PRO H610M-G DDR4 is an ideal choice for those who need a compact yet high-performance motherboard. It offers everything from advanced memory support to robust graphics capabilities, ensuring that your system stays responsive no matter the task. With high expandability options and future-proof technology, this motherboard is perfect for building a PC that meets your demands now and in the future.
Optimize your setup with the MSI PRO H610M-G and experience performance like never before! Visit systempackbd to learn more about this motherboard.
Get specific details about this product from customers who own it.
