| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) | |
| Chipset | INTEL Z890 | |
| Form Factor | ATX (243.84mmx304.8mm) | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x UDIMM | |
| Supported Memory | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |

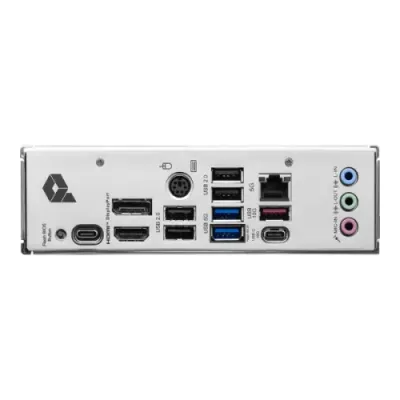

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126 5Gbps LAN | |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Others | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Details | ||
| Warranty Details | 3 Year warranty | |

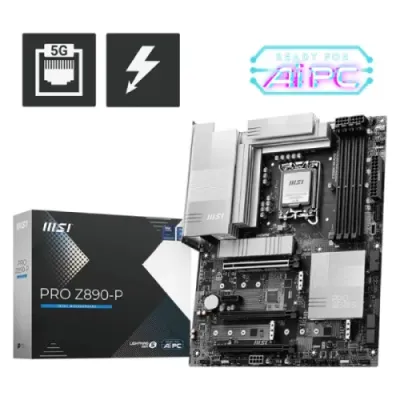

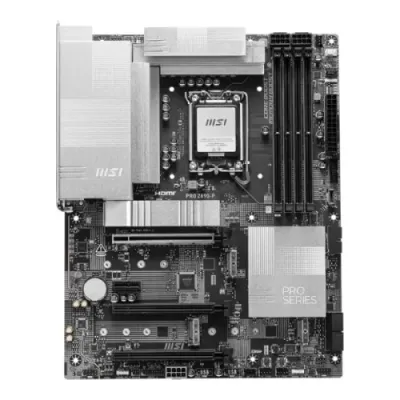

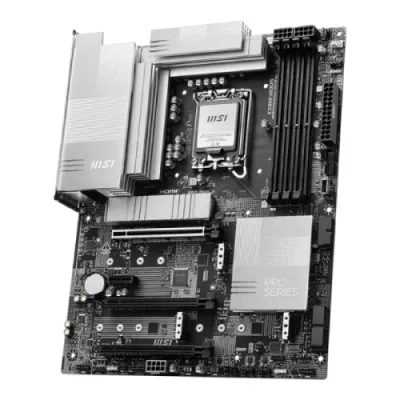

The MSI PRO Z890-P LGA 1851 ATX Motherboard is crafted for professional users who require reliable performance and versatile connectivity. Built with the Intel Z890 chipset, it supports the latest Intel Core Ultra Processors (Series 2) for unbeatable power and efficiency in productivity and high-performance applications.
This motherboard features 4x M.2 slots with PCIe 5.0 and PCIe 4.0 support for ultra-fast NVMe SSDs, providing high-speed storage and quick data transfers. The 3x PCI-E x16 slots enable powerful graphics configurations, perfect for multitasking, content creation, and resource-intensive applications.
Enjoy superior connectivity with Thunderbolt™ 4, USB 20Gbps Type-C, and 5Gbps Realtek LAN. Whether you’re gaming, working on a project, or managing multiple tasks, the MSI PRO Z890-P offers fast data transfer speeds and reliable internet connectivity. For media enthusiasts, HDMI 2.1 and DisplayPort 1.4 outputs provide immersive visual experiences with resolutions up to 8K.
Equipped with Realtek ALC897 codec and 7.1-Channel High Definition Audio, this motherboard guarantees high-quality audio for both work and entertainment. The 4x EZ Debug LEDs ensure easy troubleshooting, making the MSI PRO Z890-P the ideal choice for professionals who need both performance and reliability.
