| Basic Information | ||
| Supported CPU | - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
|
| Chipset | Intel Z790 | |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
|
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
|
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|
| Expansion Slots | ||
| PCI | PCI CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode - 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
|
| Memory | ||
| Type | DDR4 |
|
| Slots | 4 x DDR4 DIMM Slots |
|
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 128GB |
|
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port |
|
| USB (s) | - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 9 x USB 3.2 Gen1 Type-A (5 Rear, 4 Front) - 3 x USB 2.0 (1 Rear, 2 Front) |
|
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Supported Storage | - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors |
|
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Internal I/O Ports | - 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
|
| Others | ||
| Special Features | Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter |
|
| Bundled Software | - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
|
| Warranty Details | ||
| Warranty Details | 3 years |
|

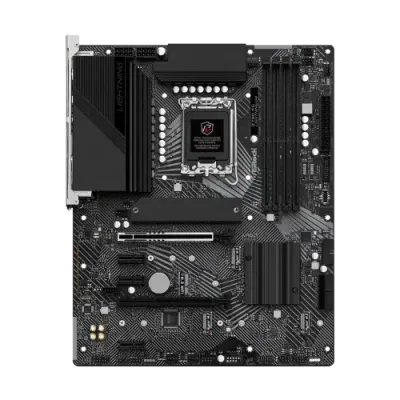

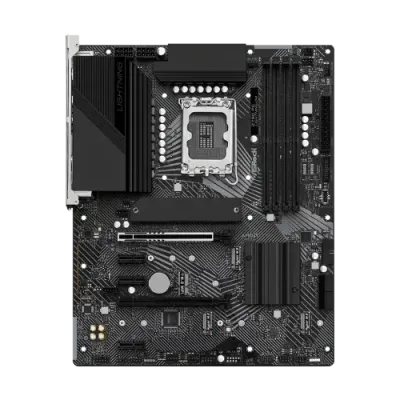

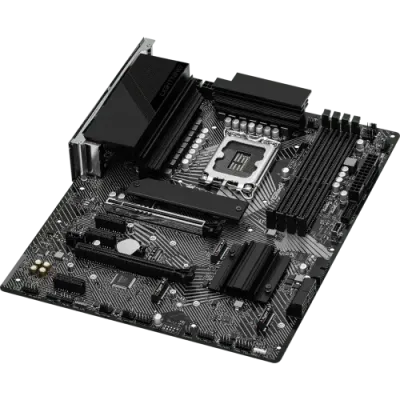

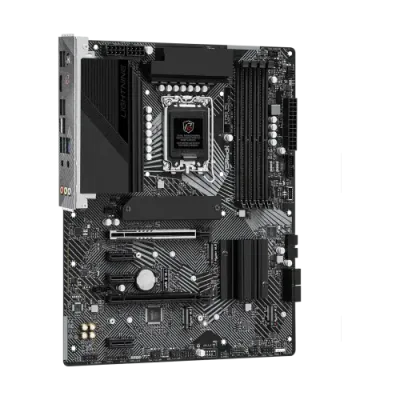

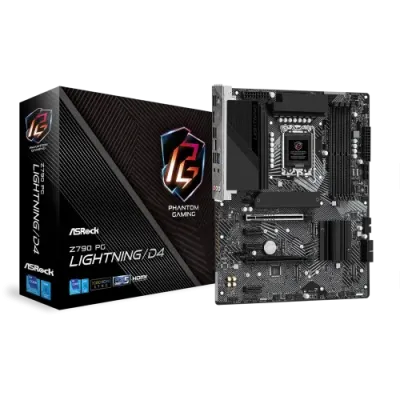

The ASRock Z790 PG Lightning/D4 ATX Motherboard is a versatile and robust solution designed to support Intel Core processors (14th, 13th, and 12th Gen) on the LGA1700 socket. With support for up to 5333MHz (OC) DDR4 memory, it allows for high-performance gaming and efficient multitasking. Equipped with PCIe 4.0 slots, this motherboard offers superior bandwidth for next-gen GPUs and storage devices, making it ideal for demanding tasks such as gaming, video editing, and 3D rendering. The Realtek 2.5G LAN provides ultra-fast networking, ensuring a seamless, lag-free online experience. Additionally, HDMI and eDP outputs allow for high-resolution display connections. With its comprehensive feature set, including enhanced cooling solutions, the ASRock Z790 PG Lightning/D4 is built to provide exceptional performance, reliability, and expandability, making it a great foundation for building a high-end gaming or workstation PC.
