| Basic Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | INTEL Z790 |
|
| Form Factor | Mini-ITX 170mmx170mm |
|
| BIOS | ||
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on the front panel |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 2 x DIMM | |
| Supported Memory | 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 7200+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 64GB | |
| Others | ||
| Graphics | ||
| Graphics | 1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI | |

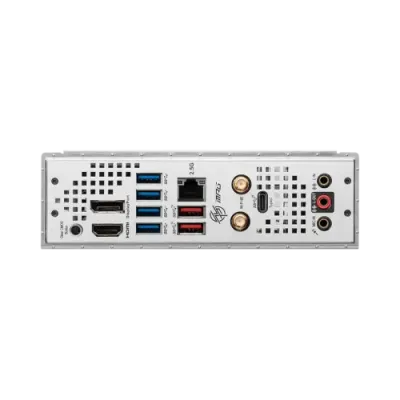

| USB (s) | 2x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) |
|
| LAN Port (s) | Intel 2.5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 1x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G port |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices |
|
| Audio | Audio Connectors | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen 2x2 Type C |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others | 1x DisplayPort | |
| Others | ||
| Special Features | 4x EZ Debug LED |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years |
|
| others | ||

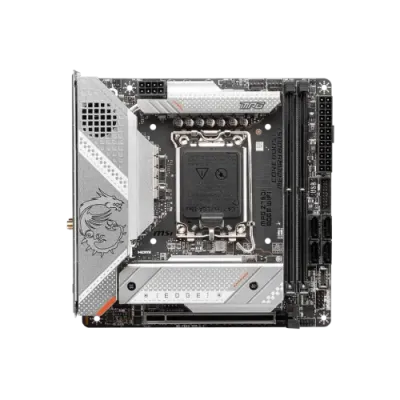

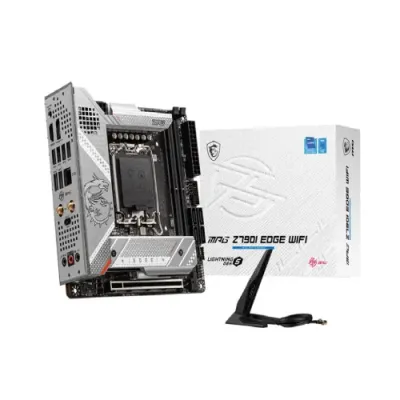

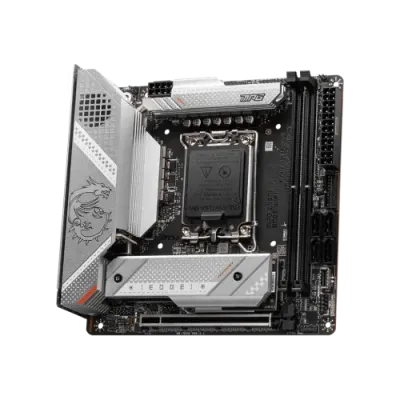

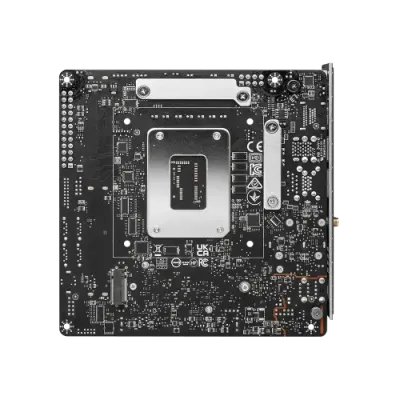

The MSI MPG Z790I EDGE WIFI Mini-ITX Motherboard is built for enthusiasts who demand high performance in a compact form factor. Engineered to support 14th, 13th, and 12th Gen Intel Core, Pentium, and Celeron processors, this motherboard is optimized for speed, efficiency, and top-tier gaming performance.
With support for up to 64GB of DDR5 RAM at an overclocked speed of 8000+ MHz, the MPG Z790I EDGE WIFI ensures superior multitasking, faster load times, and exceptional system responsiveness. It is equipped with multiple connectivity options, including high-speed 2.5G LAN and Intel Wi-Fi 6E, allowing for ultra-fast and stable networking whether you're gaming, streaming, or working remotely.
The motherboard features both HDMI and DisplayPort outputs, providing excellent display versatility for high-resolution gaming or content creation. Its premium design and advanced cooling solutions ensure consistent performance under heavy workloads, making it an ideal choice for small form factor gaming PCs, high-end compact workstations, and enthusiasts looking to maximize space without compromising power.
Get specific details about this product from customers who own it.
