| Audio and Video | ||
| IP Camera Input | 4+1 channels, each channel up to 2MP |
|
| Two-Way Talk | Reuse audio in/out, RCA |
|
| Display | ||
| Interface | Main Processor Embedded Processor Operating System Embedded LINUX Interface 1 HDMI; 1 VGA Multi-Screen Display When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 OSD Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
|
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
| Decoding Capacity | ||
| Recording | ||
| Record Mode | Compression AI Coding/H.265+/H.265/H.264+/H.264 Resolution 1080N; 720p; 960H; D1; CIF Record Rate Main Stream: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps) Sub stream: CIF (1~15 fps) Bit Rate 32 kbps–4096 kbps per channel Record Mode Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop Record Interval 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s |
|
| Video Detection And Alarm | ||
| Video Detection | Trigger Event Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis Alarm Input N/A Relay Output N/A |
|
| Playback And Backup | ||
| Search Mode | Sync Playback 1/4 Search Mode Time/Date; Alarm; MD and Exact Search (accurate to second) |
|
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
|
| Backup Mode | USB Device/Network |
|
| Storage | ||
| Internal HDD | 1 SATA port, up to 6 TB capacity |
|
| eSATA | N/A |
|
| Third Party Support | ||
| Third Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
|
| Network | ||
| Ethernet Port | Interface 1 RJ-45 Port (100 Mbps) Maximum User Access 128 users Interoperability ONVIF 16.12, CGI Conformant |
|
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
|
| Smart Phone | iPhone; iPad; Android |
|
| Auxiliary Interface | ||
| USB | USB 2 USB ports (USB 2.0) RS232 N/A RS485 N/A |
|
| Power | ||
| Power Supply | DC 12 V/1.5 A |
|
| Power Consumption | < 7 W Component Environment: Operational Conditions –10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH) Storage Conditions –20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH) |
|
| Construction | ||
| Dimensions | Cooper 1U, 198 mm × 202.9 mm × 41.5 mm (7.81'' × 7.99'' × 1.63'') |
|
| Net Weight | 0.57 kg (1.25 lb) |
|
| Gross Weight | 1.08 kg (2.38 lb) |
|
| Warranty Information | ||
| Warranty | 1 Year |
|

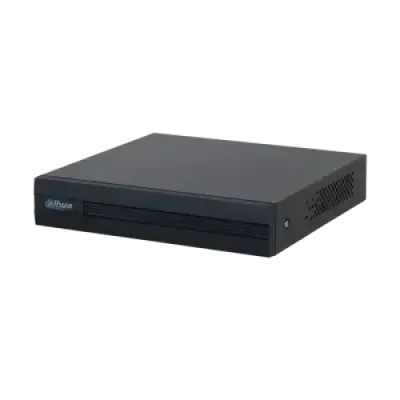

The DAHUA DH-XVR1B04-I is a compact and budget-friendly 4-channel digital video recorder designed for home, small offices, and retail stores. Supporting HDCVI, AHD, TVI, CVBS, and IP cameras, this DVR offers versatile compatibility along with AI-powered WizSense technology for smart surveillance.
✅ 4-Channel Video Input – Compatible with HDCVI, AHD, TVI, CVBS, and IP cameras.
✅ WizSense AI Technology – Smart motion detection with human/vehicle filtering.
✅ H.265+ Video Compression – Saves storage space without compromising quality.
✅ 1080P Real-Time Recording – Delivers clear and crisp surveillance footage.
✅ HDMI & VGA Output – Ensures high-quality video playback.
✅ Remote Monitoring via Mobile & PC – View live feeds anytime, anywhere.
✅ Enhanced Security & Backup Options – Protects your data from unauthorized access.
✅ Homeowners & Small Business Owners – Ideal for houses, shops, and small offices.
✅ CCTV Installers – A reliable, budget-friendly DVR for small-scale surveillance.
✅ Retail Store & Café Owners – Perfect for monitoring cash counters and entrances.
❌ Large Enterprises & Factories – If you need more channels, consider 8, 16, or 32-channel DVRs.
❌ 4K Ultra HD Users – If you require higher resolution, opt for a 4K NVR.
With AI-powered WizSense technology, multi-format support, and remote access, the Dahua DH-XVR1B04-I 4CH DVR is an excellent choice for small-scale security setups at an affordable price in Bangladesh.
