| Audio and Video | ||
| IP Camera Input | 16+2 channels, each channel up to 6MP |
|
| Two-Way Talk | Reuse audio in/out, RCA |
|
| Display | ||
| Interface | Main Processor Embedded processor Operating System Embedded linux Interface 1 HDMI; 1 VGA |
|
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
| Decoding Capacity | Multi-Screen Display When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16 OSD Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
|
| Recording | ||
| Record Mode | Compression AI Coding/H.265+/H.265/H.264+/H.264 Resolution 1080N; 720p; 960H; D1; HD1; BCIF; CIF; QCIF Record Rate Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/HD1/BCIF/CIF/QCIF (1 fps–25/30 fps) Sub stream: CIF/QCIF (1 fps–7 fps) Bit Rate 32 kbps–4096 kbps per channel Record Mode Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop Record Interval 1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec |
|
| Video Detection And Alarm | ||
| Video Detection | Trigger Event Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot; Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis Alarm Input N/A Relay Output N/A |
|
| Playback And Backup | ||
| Search Mode | Sync Playback 1/4/9/16 Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second) |
|
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
|
| Backup Mode | USB Device/Network |
|
| Storage | ||
| Internal HDD | 1 SATA port, up to 6 TB capacity |
|
| eSATA | N/A |
|
| Third Party Support | ||
| Third Party Support | ||
| Network | ||
| Ethernet Port | Interface 1 RJ-45 Port (100 MB) Maximum User Access 128 users Interoperability ONVIF 16.12, CGI Conformant |
|
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
|
| Smart Phone | iPhone; iPad; Android |
|
| Auxiliary Interface | ||
| USB | USB 2 USB ports (USB 2.0) RS232 N/A RS485 N/A |
|
| Power | ||
| Power Supply | DC 12V/2A |
|
| Power Consumption | < 10W Component Environment: Operational Conditions -10°C to +45°C (+14°F to +113°F), 10%–90% (RH) Storage Conditions -20°C to +70°C (-4°F to +158°F), 0%–90% (RH) |
|
| Construction | ||
| Dimensions | Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (10.24'' × 9.11'' × 1.87'') |
|
| Net Weight | 0.89 kg (1.96 lb) |
|
| Gross Weight | 1.42 kg (3.13 lb) |
|
| Warranty Information | ||
| Warranty | ||

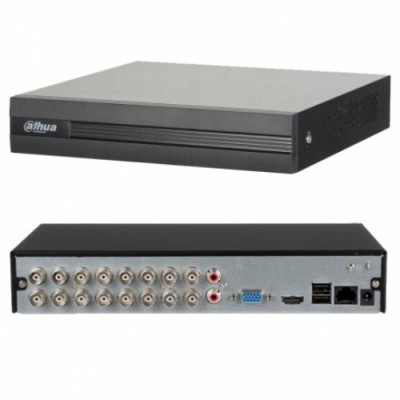

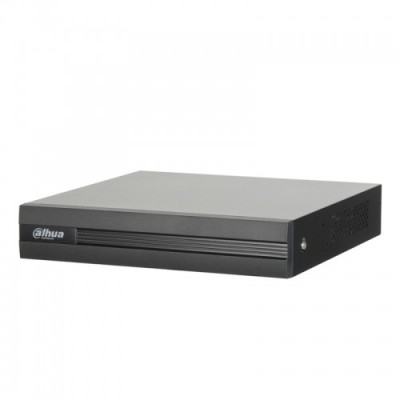

The Dahua XVR1B16-I is a 16-channel Penta-brid digital video recorder (DVR) designed for homes, offices, shops, and small businesses. It supports HDCVI, AHD, TVI, CVBS, and IP cameras, offering AI-based WizSense technology for smart motion detection. With H.265+ compression, it ensures efficient storage without compromising video quality.
✅ 16-Channel Video Input – Compatible with HDCVI, AHD, TVI, CVBS, and IP cameras.
✅ AI-Powered WizSense Technology – Human/vehicle motion detection for enhanced security.
✅ H.265+ Video Compression – Saves 50% more storage compared to H.264.
✅ 1080N & 720p Recording – Provides crisp and clear footage.
✅ HDMI & VGA Output – Ensures high-definition video playback.
✅ Remote Viewing via Mobile & PC – Monitor your premises anytime, anywhere.
✅ Secure Data Backup & Protection – Protects your recorded footage from loss.
✅ Homeowners & Small Business Owners – Perfect for shops, offices, and small security setups.
✅ Retail & Café Owners – Ideal for monitoring entrances, checkout counters, and parking areas.
✅ CCTV Installers & Security Professionals – A cost-effective solution for mid-range surveillance systems.
❌ Large Enterprises & Factories – If you need higher capacity, consider 32 or 64-channel DVRs.
❌ 4K Ultra HD Users – For higher resolution, a 4K NVR is recommended.
With Penta-brid compatibility, AI-powered motion detection, and remote access, the Dahua XVR1B16-I 16CH DVR is an excellent choice for budget-conscious users seeking a reliable surveillance system.
