| Audio and Video | ||
| IP Camera Input | 4+2 each channel up to 6MP |
|
| Two-Way Talk | Reuse audio in/out, RCA |
|
| Display | ||
| Interface | Main Processor Embedded Processor Operating System Embedded LINUX Interface 1 HDMI ,1 VGA |
|
| Resolution | 1920×1080, 1280×1024, 1280×720 |
|
| Decoding Capacity | Multi-Screen Display When IP extension mode not enabled: 4CH: 1/4 When IP extension mode enabled: 4CH: 1/4/6 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
| Recording | ||
| Record Mode | Compression H.265+/H.265/H.264+/H.264 Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF Record Rate Main Stream: 4CH: the 1st channel 5M-N(1~10fps) Sub stream: CIF/QCIF (1~15fps) Bit Rate 32Kbps ~ 6144Kbps Per Channe Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec |
|
| Video Detection And Alarm | ||
| Video Detection | Trigger Event Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
|
| Playback And Backup | ||
| Search Mode | Sync Playback 4CH: 1/4 Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second) |
|
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|
| Backup Mode | USB Device/Network |
|
| Storage | ||
| Internal HDD | 1 SATA Port, up to 6TB capacity |
|
| eSATA | ||
| Third Party Support | ||
| Third Party Support | ||
| Network | ||
| Ethernet Port | Interface 1 RJ-45 Port (100M) Maximum User Access 128 users Interoperability ONVIF 16.12, CGI Conformant |
|
| Network Function | ||
| Smart Phone | ||
| Auxiliary Interface | ||
| USB | 2x USB 2.0 |
|
| Power | ||
| Power Supply | DC12V/1.5A |
|
| Power Consumption | <10W Operational Conditions: -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
|
| Construction | ||
| Dimensions | Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“) |
|
| Net Weight | 0.54kg |
|
| Gross Weight | ||
| Warranty Information | ||
| Warranty | ||

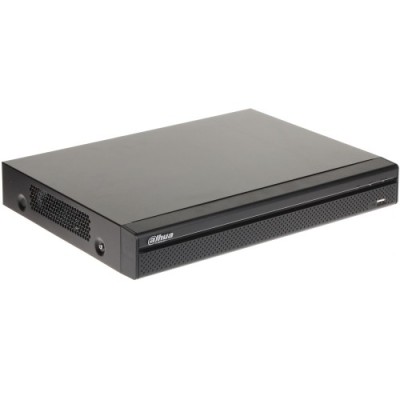

The Dahua XVR1B04H-I is a 4-channel Penta-brid DVR, supporting HDCVI, AHD, TVI, CVBS, and IP cameras. With 5M-N and 1080p recording, it provides clear video quality for home and business security. H.265+ video compression reduces storage usage while maintaining excellent footage clarity.
✅ 4-Channel Penta-brid Input – Supports HDCVI, AHD, TVI, CVBS, and IP cameras.
✅ 5M-N & 1080p HD Recording – Offers high-definition video clarity.
✅ H.265+ Compression – Saves up to 50% more storage than H.264.
✅ AI-Powered WizSense Technology – Accurate human/vehicle detection for smart monitoring.
✅ HDMI & VGA Output – Ensures crystal-clear playback on large displays.
✅ Remote Monitoring via Mobile & PC – Watch your security feed from anywhere.
✅ Enhanced Data Protection – Secure video backup for long-term storage.
✅ Homeowners & Small Businesses – Ideal for basic security needs.
✅ Shops & Cafés – Perfect for monitoring entrances and checkout areas.
✅ Budget-Conscious Buyers – A cost-effective DVR with essential features.
❌ Users Needing More Channels – For larger setups, consider 8, 16, or 32-channel DVRs.
❌ 4K Surveillance Users – If you require ultra-HD, an NVR with 4K support is recommended.
The Dahua XVR1B04H-I 4CH DVR is a budget-friendly, high-performance choice for home and small business security. With AI-based WizSense, 5M-N recording, and remote monitoring, it provides reliable surveillance at an affordable price.
