| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors | |
| Chipset | AMD B550 |
|
| Form Factor | Micro ATX Form Factor: 24.4cm x 20.5cm |
|
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
|
| M.2 Socket | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs |
|
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM slots |
|
| Supported Memory | AMD Ryzen 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | support up to 64GB (32 GB single DIMM capacity) | |
| Others | ||
| Graphics | ||
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Others | Max Shared Memory 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|

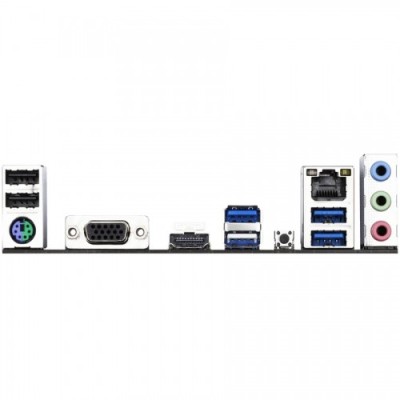

| USB (s) | Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Wireless Communication module | ||
| Supported Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
|
| RAID | ||
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | ||
| Others | D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
|
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 years warranty | |
| others | ||

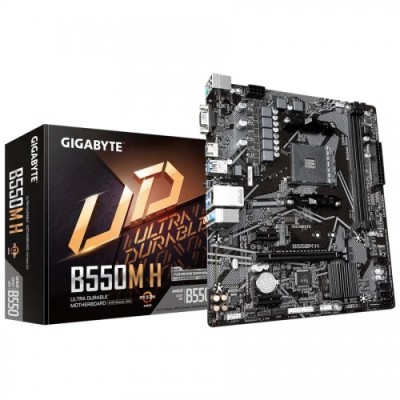

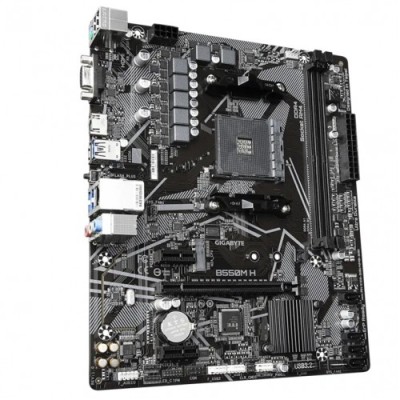

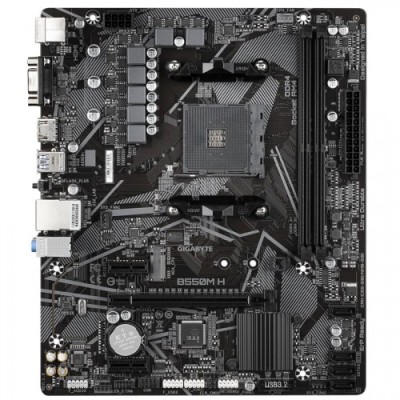

The GIGABYTE B550M H AM4 Micro-ATX Motherboard is a perfect balance of performance, durability, and efficiency, designed for PC builders who want a compact yet powerful system. Supporting AMD Ryzen 5000 Series, 3rd Gen Ryzen, and 3rd Gen Ryzen with Radeon Graphics processors, this motherboard ensures seamless multitasking and high-performance computing, making it suitable for gaming, content creation, and office productivity.
One of the standout features of the B550M H is its 4+3 phases pure digital VRM, which provides stable and precise power delivery to ensure optimal CPU performance, even under heavy workloads. This enhances system reliability and longevity, making it a great choice for users who demand consistent performance.
For networking, the GIGABYTE Exclusive 8118 Gaming LAN offers ultra-fast and low-latency connectivity, prioritizing gaming traffic to reduce lag and ensure a smooth online gaming experience. Whether you’re streaming, downloading large files, or engaging in competitive gaming, this motherboard provides a seamless and lag-free connection.
Audio quality is another area where the B550M H excels. Equipped with high-quality audio capacitors, it delivers crisp and immersive sound, allowing gamers and content creators to enjoy crystal-clear audio output for music, movies, and gaming.
The Micro-ATX form factor makes this motherboard ideal for small or mid-sized PC builds, offering flexibility in compact cases without sacrificing essential features. With support for PCIe 4.0, future-proof connectivity options, and durable components, the GIGABYTE B550M H AM4 Micro-ATX Motherboard is an excellent choice for gamers, professionals, and PC enthusiasts looking for a reliable and high-performance motherboard at an affordable price.
