Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳11,830
| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors | |
| Chipset | AMD B550 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode 1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB | |
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
|
| Others | Max Shared Memory 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI |
|

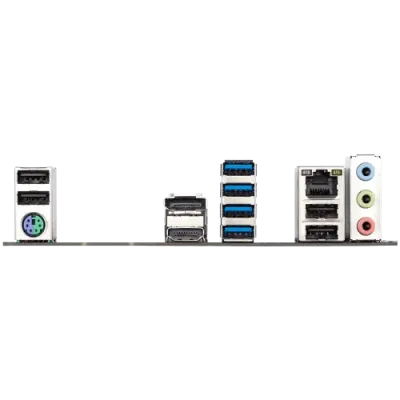

| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| Wireless Communication module | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: Supporting PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: |
|
| RAID | Support for RAID 0, RAID 1, and RAID 10 |
|
| Audio | 3 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | Display Port (s) 1 x DisplayPort |
|
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 03 years | |
| others | ||

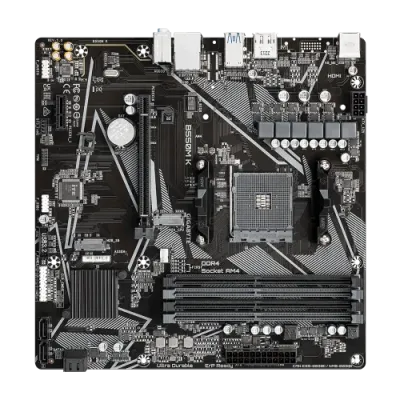

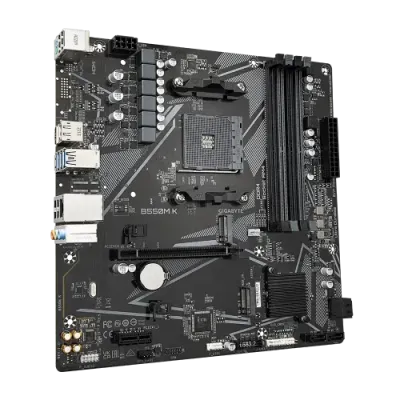

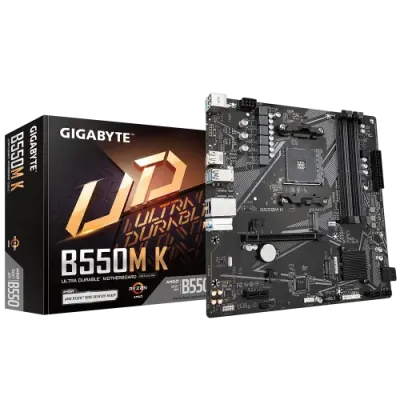

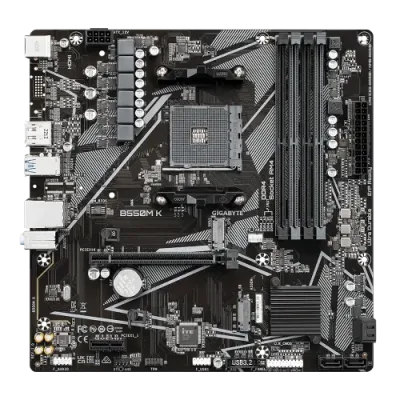

The Gigabyte B550M K AMD AM4 Micro-ATX Motherboard is an affordable yet high-performance motherboard designed for AMD Ryzen 5000, 5000 G, 4000 G, and 3000 Series processors. Engineered with GIGABYTE’s signature durability and efficiency, this B550 chipset motherboard delivers outstanding performance, seamless connectivity, and reliable power management for gaming, office work, and content creation.
With four DDR4 memory slots, this motherboard supports up to 128GB of RAM, with speeds of 4733MHz (overclocked) for exceptional responsiveness and multitasking. Whether you're gaming, editing videos, or running multiple applications, the high-speed memory support ensures smooth operation and improved system stability.
The B550M K features both HDMI and DisplayPort outputs, allowing for high-resolution display support and flexible monitor connectivity. Whether you're using a single 4K monitor or a multi-display setup, this motherboard provides stunning visuals and crystal-clear output.
For networking, the Gigabit Ethernet (GbE) LAN with Bandwidth Management ensures low-latency and stable connections, making it ideal for online gaming, streaming, and professional applications. The motherboard also includes Ultra Durable PCIe 4.0 slots, providing high-speed expansion options for GPUs and storage devices.
Designed with efficient power management, durable capacitors, and advanced thermal solutions, the Gigabyte B550M K is a reliable, cost-effective choice for those looking to build a compact yet powerful Micro-ATX system. Whether you're a casual gamer, a content creator, or a professional user, this motherboard delivers exceptional value, solid performance, and long-term reliability.
Get specific details about this product from customers who own it.
