Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳11,340
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
|
| Chipset | Intel H610 Express Chipset |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 2 x DIMM sockets | |
| Supported Memory | Support for 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: 4800/4400 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memor |
|
| Maximum Memory | Supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Wireless Communication module | ||
| Supported Storage | Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support) - 2 x SATA 6Gb/s connectors |
|
| RAID | ||
| Audio | ||

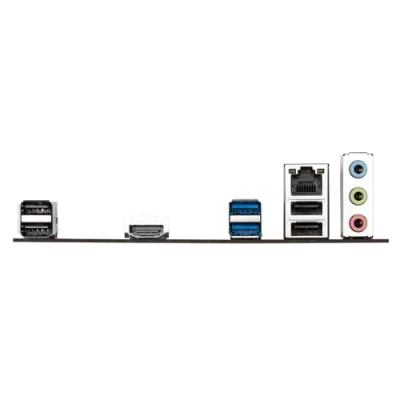

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port 1 x DisplayPort 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
| Others | 1 x DisplayPort | |
| Others | ||
| Special Features | iTE I/O Controller Chip | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 years Warranty | |
| others | ||
The GIGABYTE H610M K DDR5 Micro ATX Motherboard is a powerful and compact solution for users looking to build a high-performance system with the latest Intel processors. Designed to support Intel's 14th, 13th, and 12th Gen processors on the LGA1700 socket, this motherboard ensures exceptional processing power for gaming, content creation, and professional workloads.
One of the standout features of the H610M K is its DDR5 memory support, allowing for up to 128GB of ultra-fast RAM at speeds of 5333MHz (overclocked). This ensures a seamless computing experience with faster load times, improved efficiency, and reduced latency, making it perfect for gamers and power users alike.
The motherboard provides advanced display connectivity with HDMI 2.1 and DisplayPort, supporting high-resolution monitors and immersive visual experiences. Whether you're gaming at high frame rates or working with 4K content, this motherboard ensures smooth and vibrant visuals.
In terms of networking, the Realtek GbE LAN chip ensures reliable wired connectivity with speeds of up to 1 Gbps, providing a stable and lag-free internet experience for gaming, streaming, and online work.
Built with GIGABYTE's renowned durability and reliability, the H610M K DDR5 motherboard features high-quality components, enhanced cooling solutions, and multiple expansion options for storage and peripherals. If you're looking for a cost-effective yet high-performance motherboard to power your next Intel-based PC build, the GIGABYTE H610M K DDR5 is an excellent choice.
Get specific details about this product from customers who own it.
