| Basic Information | ||
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU |
|
| Chipset | Intel H610 Express Chipset |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DDR DIMM sockets | |
| Supported Memory | 13th Generation Intel Core i9/i7 processors: Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: Support for DDR5 4800/4400 MT/s memory modules 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 64 GB (32 GB single DIMM capacity) of system memory |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| Wireless Communication module | ||
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
|
| RAID | ||
| Audio | 3 x audio jacks |
|

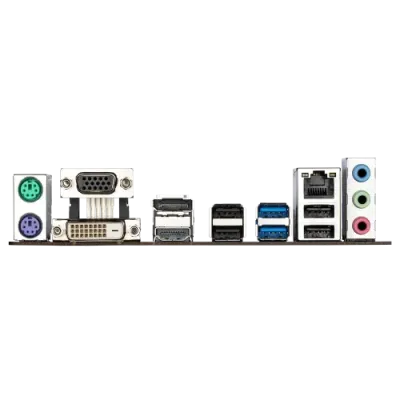

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
| Others | D-Sub (s) 1 x D-Sub port DVI-D (s) 1 x DVI-D port |
|
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
|
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

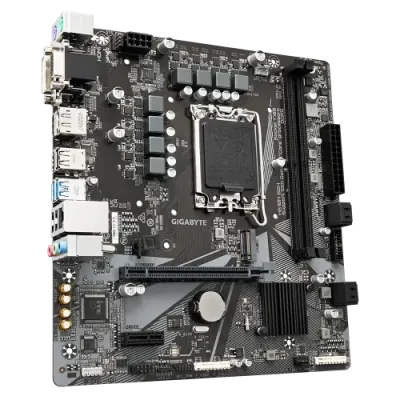

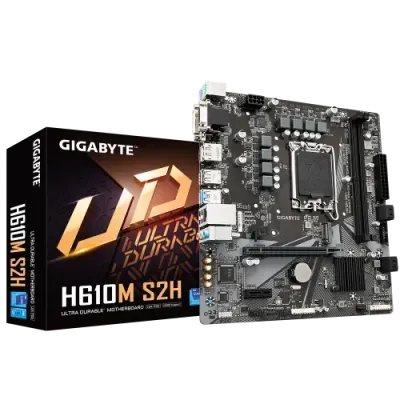

The GIGABYTE H610M S2H DDR5 mATX Motherboard delivers exceptional performance and efficiency, making it an excellent choice for building a modern Intel-based PC. Designed to support Intel's 14th, 13th, and 12th Gen processors on the LGA1700 socket, this Micro ATX motherboard offers powerful computing capabilities suitable for gaming, content creation, and professional workloads.
Equipped with two DDR5 memory slots, the motherboard allows up to 64GB of RAM at speeds of 5600MHz, ensuring a fast and responsive system with improved efficiency and reduced latency. Whether you're gaming, streaming, or handling high-demand applications, the H610M S2H DDR5 motherboard provides the speed and stability needed for a smooth experience.
For superior display connectivity, it features two HDMI ports and one DisplayPort, making it an ideal choice for multi-monitor setups and high-resolution content viewing. Whether you're a gamer, designer, or professional user, this motherboard ensures stunning visuals and high refresh rates.
In terms of networking, the Realtek GbE LAN chip provides fast and stable connectivity, ensuring smooth online gaming, video streaming, and professional applications without lag.
Built with GIGABYTE's Ultra Durable technology, the H610M S2H DDR5 motherboard ensures long-lasting reliability with high-quality components, efficient cooling solutions, and excellent power management. If you're looking for a cost-effective yet high-performance motherboard for your next PC build, the GIGABYTE H610M S2H DDR5 is an outstanding choice.
