| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors | |
| Chipset | AMD A520 Chipset | |
| Form Factor | Micro-ATX Form Factor 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm) |
|
| Audio | Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x16 slot (From AMD processor, PCI_E2) 2x PCIe 3.0 x1 slots(From chipset, PCI_E1 & PCI_E3) 1x PCI slot |
|
| M.2 Socket | 1x M.2 slot (From AMD processor, Key M) | |
| Memory | ||
| Type | Dual-channel memory architecture | |
| Slots | 2x DDR4 memory slots | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1280 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3 |
|
| Others | Max Shared Memory 16GB |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz | |
| USB (s) | AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1x Realtek RTL8111EPV 1Gbps LAN controller | |
| Supported Storage | AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slot (From AMD processor, Key M) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
|
| Audio | 1x Front panel audio connector | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Others | VGA (s) 1x VGA port, supports a maximum resolution of 2048x1280 @60Hz DVI-D (s) 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz |
|
| Warranty Details | ||
| Warranty Details | 03 Years Warranty | |

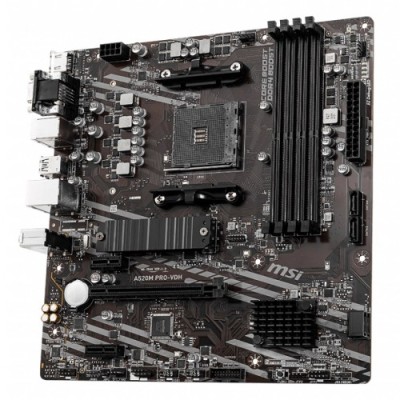

The MSI A520M PRO-C DASH AMD AM4 Micro-ATX Motherboard is a budget-friendly and feature-rich motherboard designed for business, home, and office computing in Bangladesh. Compatible with Ryzen 5000, 4000G, and 3000 series processors, it delivers stable and efficient performance for various tasks.
With DDR4 memory support up to 4600 MHz (OC), it ensures smooth multitasking and responsiveness. The DASH LAN feature allows remote management, making it an excellent choice for business environments. The Turbo M.2 slot provides high-speed NVMe SSD support, ensuring faster data transfer and system boot-up.
Built with a 2oz thickened copper PCB, this motherboard offers better conductivity and durability, ensuring long-term stability. Whether you're building a business workstation, home PC, or an entry-level gaming setup, the MSI A520M PRO-C DASH is a cost-effective and reliable choice.
Buy now from systempackbd at the best price in Bangladesh and enjoy fast delivery, expert service, and top-quality support!
