Pay cash discounted price and save
Pay cash discounted price and save
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| BIOS | ||
| Audio | 1x Front Audio (JAUD) | |
| Others | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors) |
|
| M.2 Socket | 3x M.2 | |
| Others | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DIMMs | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Maximum Memory | 256GB | |
| Others | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
|
| LAN Port (s) | Realtek 8126-VB 5G LAN | |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) M2_3 slot • Supports up to PCIe 4.0 x2 RAID • Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. |
|
| RAID | ||
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0) |
|
| TPM (Trusted Platform Module ) | ||
| Others | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 Years | |
| others | ||
CPU Support: AMD Ryzen 7000 / 8000 / 9000 Series (Socket AM5)
Chipset: AMD B850
Form Factor: Micro-ATX (244mm x 244mm)
Memory: 4x DDR5 DIMM slots, supporting up to 256GB, with speeds up to DDR5-8200+ MT/s (OC)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x4
Storage:
2x PCIe 5.0 x4 M.2 slots
1x PCIe 4.0 x2 M.2 slot
4x SATA 6Gb/s ports
Networking:
Realtek 8126-VB 5G LAN
Wi-Fi 7 and Bluetooth 5.3
Audio: Realtek ALC4080 Codec

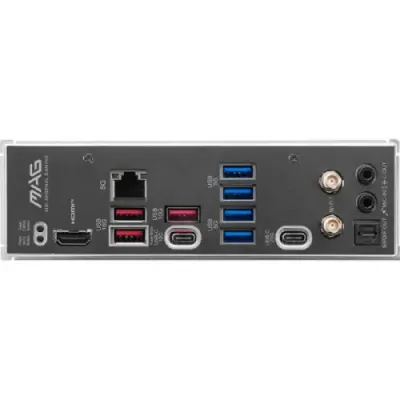

Rear I/O Ports:
1x HDMI 2.1 (up to 8K @ 60Hz)
1x USB 20Gbps Type-C
1x USB 10Gbps Type-C
3x USB 10Gbps Type-A
4x USB 5Gbps Type-A
Audio jacks
Flash BIOS and Clear CMOS buttons
The MAG B850M MORTAR WIFI delivers solid performance, handling demanding tasks and gaming with ease. Its robust VRM design ensures stable power delivery, and the board maintains low temperatures under load, thanks to effective heatsinks. The minimalist aesthetic with subtle green accents appeals to users preferring understated designs.Tech4GamersReddit+1Tech4Gamers+1
As of May 2025, the motherboard is priced around $200 USD. Availability may vary by region; it's advisable to check local retailers or online platforms for current stock and pricing.
If you're exploring other options, here are some alternatives:
MSI MAG B650M MORTAR WIFI: A slightly older model with similar features, suitable for budget-conscious builds.
MSI MAG B860M MORTAR WIFI: Offers updated features and enhanced performance.
MSI MAG X870 TOMAHAWK WIFI: An ATX board for those needing more expansion slots and advanced features.
Get specific details about this product from customers who own it.
