| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors | |
| Chipset | AMD B550 Chipset | |
| Form Factor | Micro-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
|
| BIOS | ||
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot (PCI_E2) B550M PRO supports PCIe 4.0/3.0 2x PCIe 3.0 x1 slots |
|
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) B550M PRO Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 2x memory slots | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Maximum Memory | 64GB | |
| Others | ||
| Graphics | ||
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x HDMI 1.4, supports a maximum resolution of 4096x2160@60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
|
| Others | Max Shared Memory 16GB |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4, supports a maximum resolution of 4096x2160@60Hz | |
| USB (s) | AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1x Realtek RTL8111H LAN controller | |
| Wireless Communication module | ||
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) B550M PRO Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| RAID | ||
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Others | Display Port (s) 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz VGA (s) 1x VGA port, supports a maximum resolution of 2048 x 1536 @50Hz, 2048 x 1280 @60Hz, 1920 x 1200 @ 60Hz |
|
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 Years Warranty | |
| others | ||

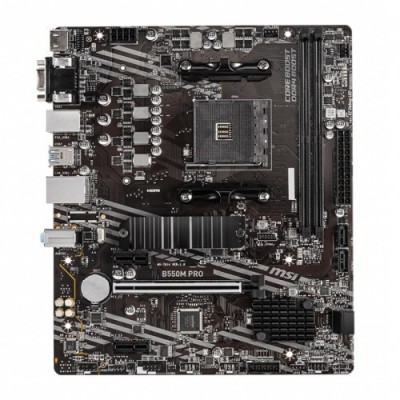

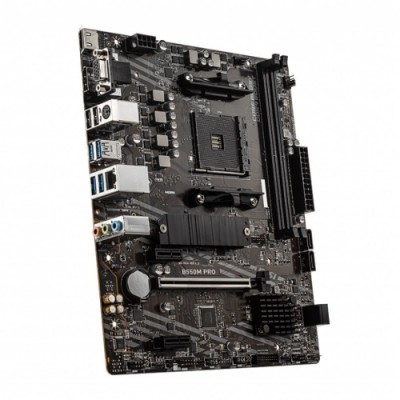

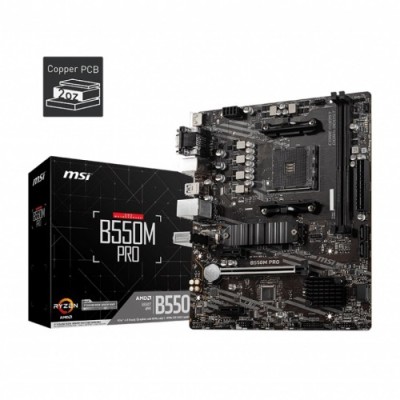

The MSI B550M PRO AM4 Micro-ATX Motherboard is a high-performance motherboard engineered to meet the needs of gaming enthusiasts, content creators, and business professionals in Bangladesh. Designed for the AMD Ryzen 5000, 4000G, and 3000 series processors, it offers exceptional performance and stability, making it perfect for a range of computing needs, from daily tasks to high-end gaming and content creation.
This motherboard supports DDR4 memory up to 4600 MHz (OC), enabling you to unlock blazing-fast speeds, ensuring that even the most demanding applications run smoothly and efficiently. Whether you're running multiple apps simultaneously, streaming, or creating content, you can rely on this motherboard to provide optimal multitasking performance.
In addition, the DDR4 Boost feature ensures maximum signal quality and memory stability, reducing the risk of data corruption while maintaining high-speed performance. The Premium Thermal Solution ensures that your system stays cool even under heavy loads, preventing overheating and promoting a longer lifespan for your components.
The Audio Boost technology enhances your audio experience, providing crisp, clear sound quality for an immersive gaming or media experience. Whether you're gaming, video editing, or enjoying high-quality entertainment, the Audio Boost ensures that your audio is up to the task.
Designed with reliability and efficiency in mind, the MSI B550M PRO motherboard is the ideal choice for users seeking a compact yet powerful solution for gaming, professional work, or content creation. Its robust features and affordable price make it the perfect choice for anyone looking to build a high-performance system without compromising on quality.
Get the MSI B550M PRO at the best price in Bangladesh from systempackbd and enjoy fast delivery, expert service, and guaranteed quality. Order now and start building your dream system today!
Get specific details about this product from customers who own it.
